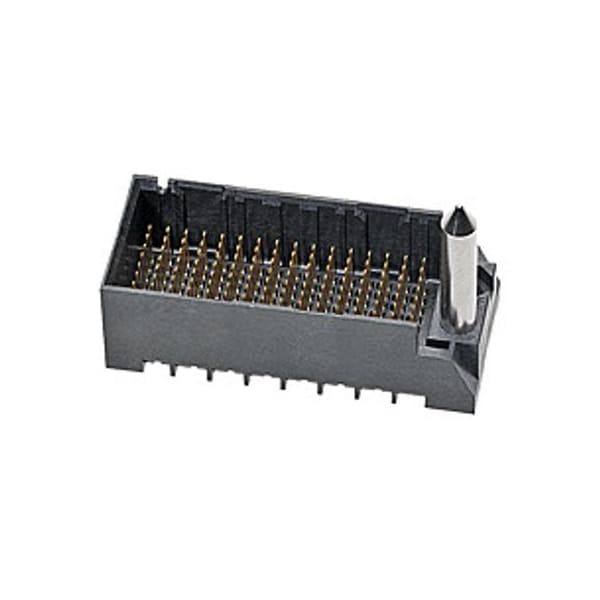

Conectores modulares de alta velocidad Impact Bp 3X16 Gr/W Pact Bp 3X16 Gr/W Sn.
| Color | Black |
|---|---|
| Max. Voltage | 30V AC/DC |
| Standards | UL E29179 |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 1.9 mm |
| Max. Temp. | 85 deg C |
| Material | High Temperature Thermoplastic |
| Contact Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Current Rating | 0.75 A |
| Number of Contacts | 144 |
| Number of Rows | 9 |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| Package Quantity | 1 |
