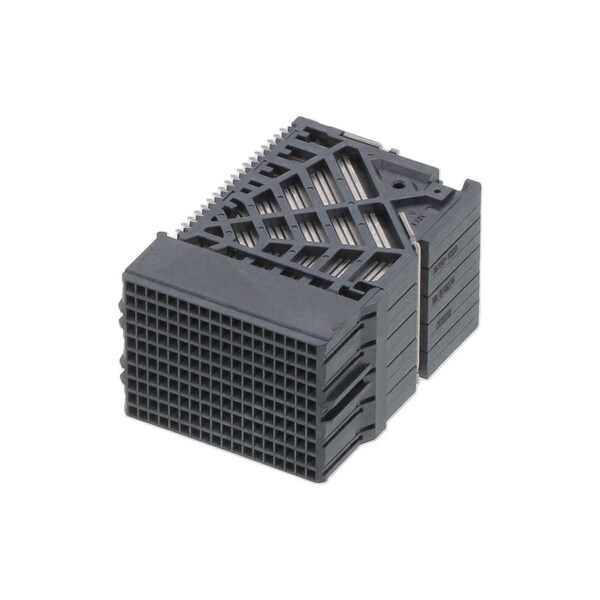

Conectores modulares de alta velocidad Impact Dc 6X10 Open Pack Dc 6X10 Open Sn.
| Color | Black |
|---|---|
| Max. Voltage | 30V AC/DC |
| Application | Conventional, Daughtercard, Coplanar |
| Series | 76150 |
| Standards | UL E29179 |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 1.9 mm |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 85 deg C |
| Number of Rows | 18 |
| Contact Finish | Gold Plated |
| Current Rating | 0.75 A |
| Number of Contacts | 180 |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Flammability Rating | UL 94V-0 |
| PC Tail Length | 1.2 mm |
| Circuits (Loaded) | 180 |
| Flammability | 94 V to 0 |
| PCB Thickness - Recommended | 1 mm |
| First Mate / Last Break | No |
| Keying to Mating Part | None |
| Current - Maximum per Contact | 0.75 A |
| Stackable | No |
| Impedance | 100Ω |
| Number of Pairs | 6 |
| Guide to Mating Part | No |
| Component Type | PCB Receptacle |
| Pitch - Mating Interface | 1.9 mm |
| Material - Resin | High Temperature Thermoplastic |
| Product Name | Impact |
| Material - Plating Termination | Tin |
| UL | E29179 |
| Durability (mating cycles max) | 200 |
| Number of Columns | 10 |
| Orientation | Right Angle |
| Plating min - Mating | 0.762 um |
| Shielded | No |
| Polarized to PCB | No |
| Material - Plating Mating | Gold |
| Material - Metal | High Performance Alloy |
| PCB Retention | None |
| PCB Locator | No |
| Data Rate | 25 Gbps |
| Temperature Range - Operating | -55° to +85°C |
| Voltage - Maximum | 30V AC (RMS)/DC |
| Package Quantity | 1 |
