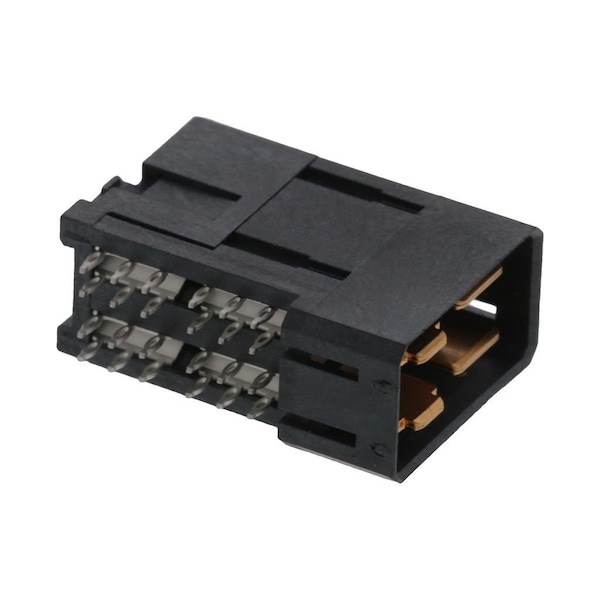

High Speed / Modular Connectors Impact Pwr 4Pr Ra Hd Hdr Pf .76Aulf 4Ckt
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Conventional, Coplanar |
| Series | 78213 |
| Standards | CSA Certified, UL E29179 |
| Material | High Temperature Thermoplastic |
| Terminal Type | Through Hole - Compliant Pin |
| Hole Center to Center | 5.2 mm (Mating Interface); 2 mm, 3.2 mm (Termination Interface) |
| Max. Temp. | 85 deg C |
| Contact Plating Thickness | 0.762 µm |
| Number of Rows | 2 |
| Number of Contacts | 4 |
| Current Rating | 20 A |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Product Name | Impact |
| Orientation | Right Angle |
| Shielded | No |
| Plating min - Mating | 0.762 um |
| Material - Plating Termination | Tin |
| Material - Resin | High Temperature Thermoplastic |
| First Mate / Last Break | Yes |
| UL | E29179 |
| Durability (mating cycles max) | 200 |
| Current - Maximum per Contact | 20 A |
| PCB Retention | None |
| Material - Plating Mating | Gold |
| Guide to Mating Part | No |
| Flammability | 94 V to 0 |
| Keying to Mating Part | None |
| Number of Pairs | 4 |
| CSA | LR19980 |
| Temperature Range - Operating | -55° to +85°C |
| Polarized to PCB | No |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Locator | No |
| Component Type | Power Header |
| Material - Metal | Copper Alloy |
| Pitch - Mating Interface | 5.2 mm |
| Circuits (Loaded) | 4 |
| PC Tail Length | 2 mm |
| Stackable | No |
| Package Quantity | 1 |
