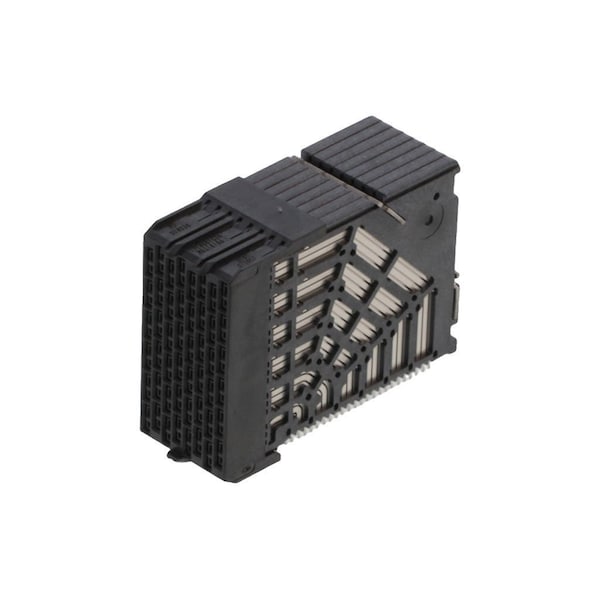

High Speed / Modular Connectors Impel 1.9Mm 6X8 Ra Daughcrd Unguid
| Color | Black |
|---|---|
| Max. Voltage | 29.9V AC/DC |
| Application | Daughtercard, Coplanar |
| Series | 171400 |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 85 deg C |
| Hole Center to Center | 1.9 mm |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Number of Contacts | 96 |
| Current Rating | 0.75 A |
| Terminal Finish | Nickel Plated |
| Number of Rows | 12 |
| Current - Maximum per Contact | 0.75 A |
| Number of Pairs | 6 |
| First Mate / Last Break | No |
| PCB Retention | None |
| Durability (mating cycles max) | 200 |
| Circuits (Loaded) | 96 |
| Product Name | Impel |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Tin, Nickel |
| PC Tail Length | 1.3 mm |
| PCB Thickness - Recommended | 1 mm |
| Voltage - Maximum | 29.9V AC (RMS)/DC |
| Orientation | Right Angle |
| Shield Type | Full Shield |
| Material - Metal | High Performance Alloy |
| Component Type | PCB Receptacle |
| Material - Resin | High Temperature Thermoplastic |
| Data Rate | 40 Gbps |
| Temperature Range - Operating | -55° to +85°C |
| Guide to Mating Part | No |
| PCB Locator | No |
| Plating min - Mating | 0.762 um |
| UL | E29179 |
| Keying to Mating Part | None |
| Pitch - Mating Interface | 1.9 mm |
| Impedance | 90Ω |
| Number of Columns | 8 |
| Flammability | 94 V to 0 |
| Package Quantity | 1 |
