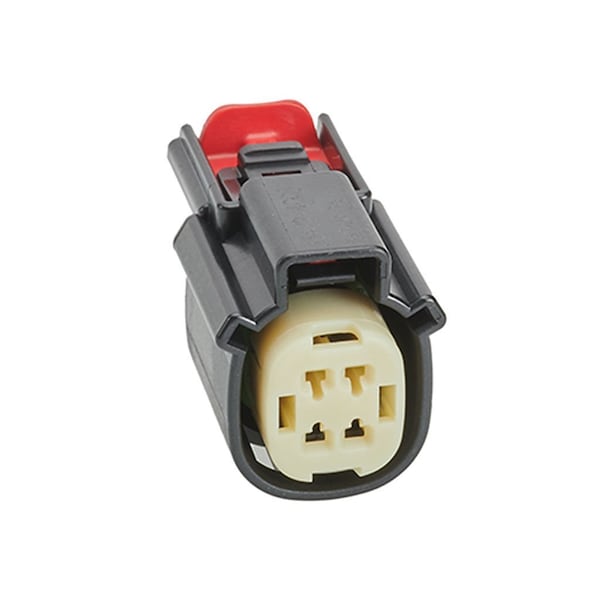

Conectores modulares de alta velocidad Mx150 Mat Sld Rec 4Ckt Dr Ky C sin Cpa.
| Color | Gray |
|---|---|
| Application | Power, Wire-to-Wire, Wire-to-Board |
| Series | 33472 |
| Material | Nylon |
| Connector Type | Receptacle |
| Hole Center to Center | 3.5 mm |
| Max. Temp. | 125 deg C |
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Temperature Range - Operating | -40° to +125°C |
| Lock to Mating Part | Yes |
| Color - Resin | Gray |
| Glow-Wire Capable | No |
| Circuits (maximum) | 4 |
| Pitch - Mating Interface | 3.5 mm |
| Polarized to Mating Part | Yes |
| Material - Resin | Nylon, SPS |
| Product Name | MX150 |
| Keying to Mating Part | Yes |
| Stackable | No |
| Package Quantity | 1 |
