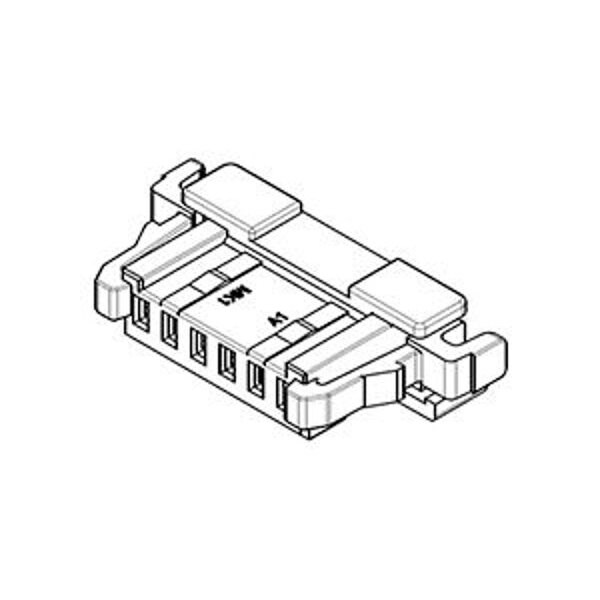

Illumimate 1.00Mm Pitch Wire-To-Board Crimp Housing, Single Row, Side Lock
| Color | Natural |
|---|---|
| Series | 104128 |
| Application | Wire-to-Board |
| Item | Wire-to-Board Connector |
| Material | Liquid Crystal Polymer |
| Connector Type | Receptacle |
| Sub-Category | Crimp Housings |
| Number of Contacts | 6 |
| Max. Temp. | 130 deg C |
| Hole Center to Center | 1 mm |
| Number of Rows | 1 |
| Product Name | IllumiMate |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 1 mm |
| Material - Resin | Liquid Crystal Polymer |
| Glow-Wire Capable | No |
| Circuits (maximum) | 6 |
| Temperature Range - Operating | -25° to +130°C |
| Package Quantity | 1 |
