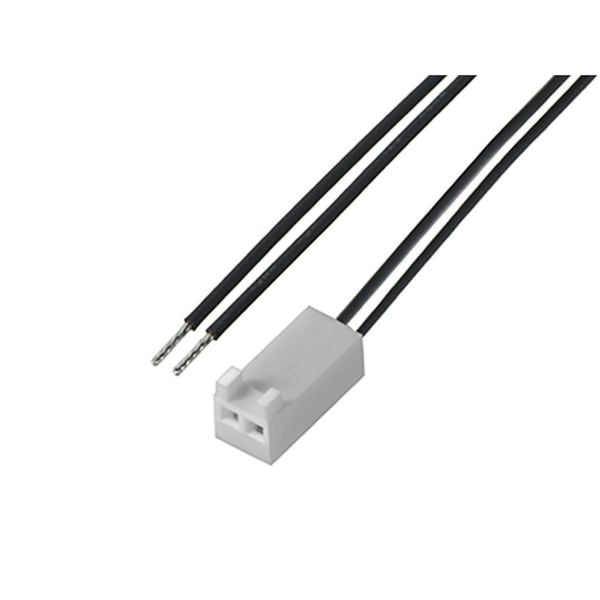

Kk 2.54 Sr R-S 2Ckt 150Mm Disc Sn
| Cable Length | 150 mm |
|---|---|
| Type | Discrete Wire Assembly |
| Series | 217797 |
| Color - Resin | Natural |
| Wire Insulation Diameter | 1.57mm max. |
| Material - Plating Mating | Tin |
| Number of Rows | 1 |
| Gender | Female-Pigtail |
| Lock to Mating Part | Yes |
| Wire/Cable Type | UL 11028 |
| Material - Plating Termination | Tin |
| Product Name | KK 254 |
| Assembly Configuration | Dual Ended Connectors |
| Wire Size (AWG) | 22 |
| Pitch - Mating Interface | 2.54 mm |
| Single Ended | No |
| Termination Interface Style | Crimp or Compression |
| Material - Resin | Nylon |
| Connector to Connector | KK 254-to-Pigtail |
| Material - Metal | Brass |
| Circuits (Loaded) | 2 |
| Package Quantity | 1 |
