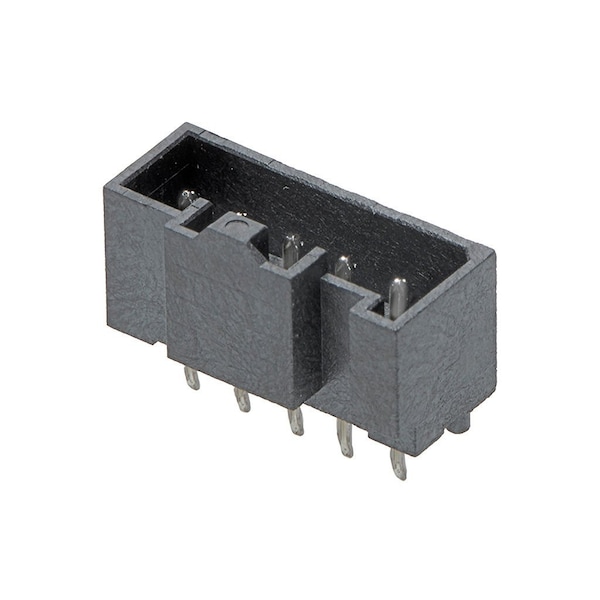

L1Nk 250 Header, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, With Peg
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 207843 |
| Max. Voltage | 250V AC/DC |
| Application | Power, Wire to-Board |
| Material | Crystal Polymer |
| Features | Glow-Wire Capable |
| Hole Center to Center | 2.5 mm |
| Max. Temp. | 105 deg C |
| Terminal Type | Through Hole |
| Standards | CSA Certified |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Number of Contacts | 5 |
| Flammability Rating | UL 94V-0 |
| Current Rating | 6.5 A |
| Orientation | Vertical |
| Material - Plating Termination | Tin |
| First Mate / Last Break | No |
| Pitch - Mating Interface | 2.5 mm |
| Keying to Mating Part | None |
| Component Type | PCB Header |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Durability (mating cycles max) | 25 |
| Circuits (Loaded) | 5 |
| Material - Metal | Brass |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Flammability | 94V-0 |
| Shrouded | Fully |
| Material - Resin | Liquid Crystal Polymer |
| Polarized to PCB | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Mating | Tin |
| CSA | 152514 |
| Breakaway | No |
| Guide to Mating Part | No |
| Current - Maximum per Contact | 6.5 A |
| PCB Retention | None |
| Glow-Wire Capable | Yes |
| Lock to Mating Part | Yes |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| PC Tail Length | 3.45 mm |
| PCB Locator | No |
| Product Name | KK Plus |
| Package Quantity | 1 |
