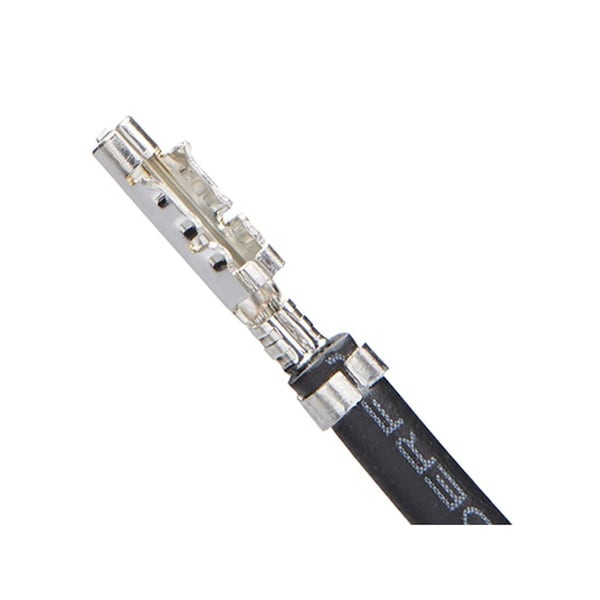

Link396 Tin Plated 300Mm 18Awg
| Color | Black |
|---|---|
| Series | 79758 |
| Length | 300 mm |
| Connector Type | Female-Female |
| Material | Alloy |
| Contact Finish | Tin Plated |
| Terminal Type | Crimp, Compression |
| Number of Contacts | 1 |
| Max. Insulation Dia. | 3.12 mm |
| Wire Range | 18 AWG |
| Terminal Finish | Tin Plated |
| Wire Size (AWG) | 18 |
| Circuits (Loaded) | 1 |
| Material - Plating Mating | Tin |
| Single Ended | No |
| Cable Length | 300 mm |
| Assembly Configuration | Pre-crimped Lead Only |
| Connector to Connector | KK Plus 396 Crimp Terminals |
| Wire/Cable Type | UL 1015 |
| Wire Insulation Diameter | 3.12mm |
| Material - Plating Termination | Tin |
| Product Name | KK Plus |
| Package Quantity | 1 |
