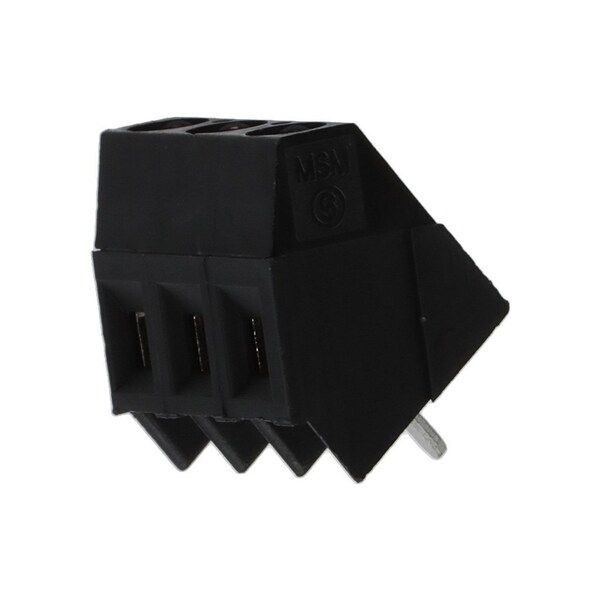

Low Profile 35 Degree 5.08 3 Asy
| Type | Euro Block |
|---|---|
| Temperature Range - Operating | 105°C |
| PCB Thickness - Recommended | 2.6 mm |
| Lock to Mating Part | None |
| Wire Size mm² | 0.05-2.50 |
| Panel Mount | No |
| Entry Angle | 35° Angle |
| Stackable | Yes |
| Shrouded | Fully |
| Voltage - Maximum | 300 V |
| Flammability | 94V-0 |
| Circuits (Loaded) | 3 |
| Pitch - Termination Interface | 5.08 mm |
| Orientation | Vertical |
| Current - Maximum per Contact | 17.5 A |
| UL | E48521 |
| PC Tail Length | 3.8 mm |
| Wire Size AWG | 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 |
| Pitch - Mating Interface | 5.08 mm |
| PCB Retention | None |
| Number of Rows | 1 |
| Product Name | Eurostyle Fixed Mount |
| Component Type | One Piece |
| Series | 39880 |
| Package Quantity | 1 |
