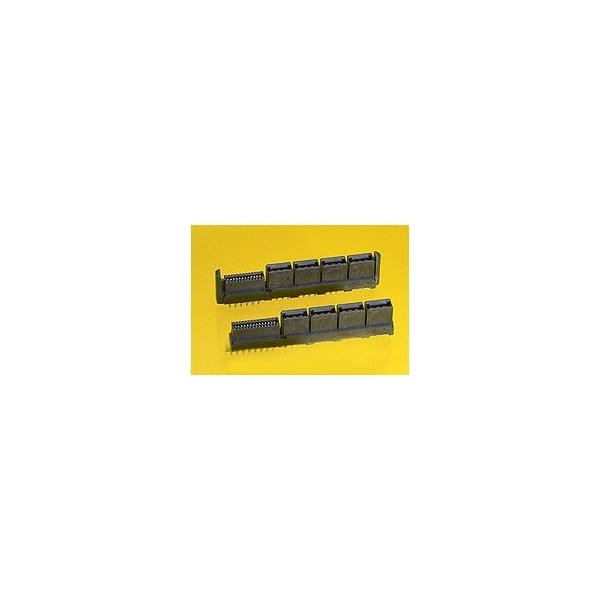

LPH VERT. ASSY NO GUIDES 10PX32S CKT
| Application | Board-to-Board, Power |
|---|---|
| CSA | LR19880 |
| Pitch - Mating Interface | 1.27 mm, 12 mm |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (maximum) | 42 |
| Circuits (Loaded) | 42 |
| Polarized to PCB | Yes |
| Plating min - Mating | 0.762µm |
| Series | 46114 |
| Material - Plating Mating | Gold |
| Surface Mount Compatible (SMC) | Yes |
| Polarized to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Orientation | Vertical |
| Current - Maximum per Contact | 30 A |
| Color - Resin | Black |
| Flammability | 94V-0 |
| UL | E29179 |
| Number of Rows | 2 |
| Material - Metal | High Performance Alloy |
| Pitch - Termination Interface | 1.27 mm, 2.5 mm |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Termination Interface: Style | Through Hole - Compliant Pin |
| Plating min - Termination | 2.540µm |
| Durability (mating cycles max) | 250 |
| Product Name | EXTreme LPHPower |
| (p)ower-(s)ignal Configuration | 10p - 32s |
| Material - Resin | High Temperature Thermoplastic |
| Package Quantity | 1 |
