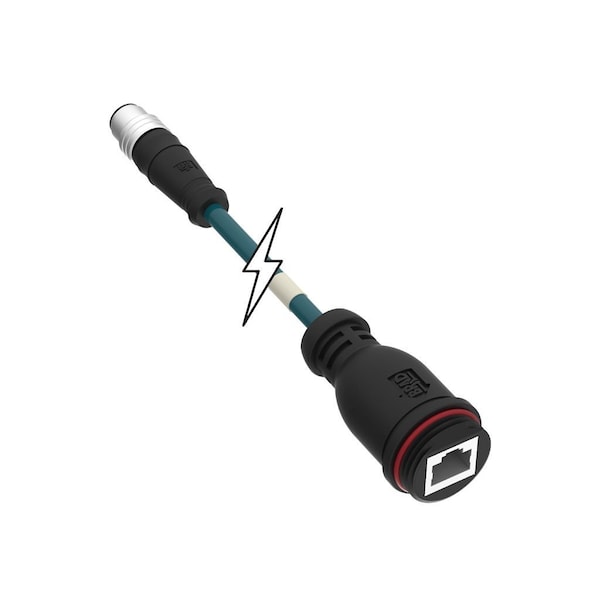

M12 D-CODE MALE-FEMALE RJ45 0.5M
| Connector End B | RJ-45 |
|---|---|
| Poles | 4 |
| Temperature Range - Operating | -20° to +75°C |
| Wire/Cable Type | AWM, Unshielded TPE 2463 |
| Material - Contact | Copper Alloy |
| Color - Cable Jacket | Teal |
| Orientation | Straight to Straight |
| Series | 130048 |
| Cable Diameter | 5.59mm (.220") |
| Keyway | D-coded |
| LED Indicator | No |
| IP Rating | IP67 |
| Wire Size (AWG) | 24 |
| Material - Coupling Nut | Nickel-plated Brass |
| Cable Length | 0.5 m |
| Current - Maximum per Contact | 1.5 A |
| Coupling Style | Threaded |
| Material - Cable Jacket | TPE |
| Material - Connector Body | TPU |
| Type | Double Ended |
| Material - Plating Mating | Gold |
| Product Name | Micro-Change, RJ-Lnxx |
| Connector End A | Micro-Change (M12) |
| Gender | Female-Male |
| Voltage - Maximum | 30 V |
| Package Quantity | 1 |
