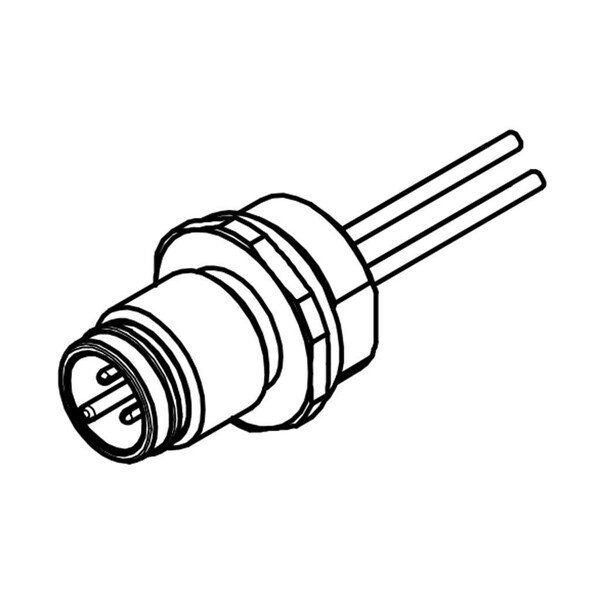

M12-RECEPT-4P-MALE-FR-PG9-0.3M
| Series | 120084 |
|---|---|
| Max. Voltage | 250V AC/DC |
| Length | 0.3 m |
| Connector Type | Male |
| Max. Temp. | 90 deg C |
| Sub-Category | Industrial Receptacles |
| IP Rating | IP69K |
| Wire Range | 22 AWG |
| Type | Single Ended (pigtail) |
| Material | Brass |
| Current Rating | 4 A |
| Wire Size (AWG) | 22 |
| Product Name | Ultra-Lock |
| NEMA Rating | NEMA 6 |
| Material - Component | Nickel-plated Brass |
| Keyway | Single |
| Poles | 4 |
| Temperature Range - Operating | -25° to +90°C |
| Wire/Cable Type | UL 1569 |
| Mounting Thread Size | PG9 |
| Panel Mount | Front |
| Orientation | Straight |
| Coupling Type | External Thread |
| Current - Maximum per Contact | 4 A |
| Voltage - Maximum | 60V |
| Package Quantity | 1 |
