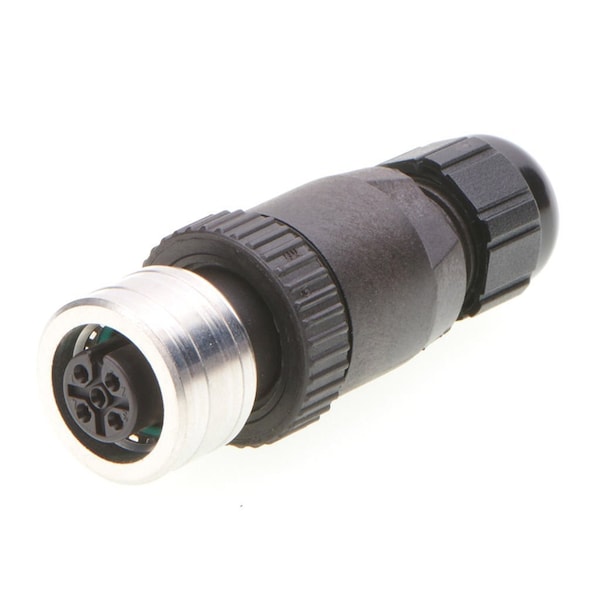

M12U ATTACHABLE 5P FP ST
| IP Rating | IP69K |
|---|---|
| Coupling Type | Push to Lock |
| Cable Diameter | 3.30-6.60mm (.130-.260") |
| Material - Connector Body | PA |
| Approvals | cCSAus certified |
| Diagnostics / LEDs | No |
| Material - Coupling Nut | Nickel-plated Brass |
| Temperature Range - Operating | -25°C to +90°C |
| Keyway | Single |
| Gender | Female |
| Type | Field Attachable Connector |
| CSA | LR6837 |
| Product Name | Ultra-Lock |
| Voltage - Maximum | 30V AC / 36V DC |
| Material - Contact | Brass |
| Current - Maximum per Contact | 4 A |
| Poles | 5 |
| Series | 120085 |
| Material - Plating Mating | Gold |
| Wire Size (AWG) | 18 |
| Orientation | Straight |
| Package Quantity | 1 |
