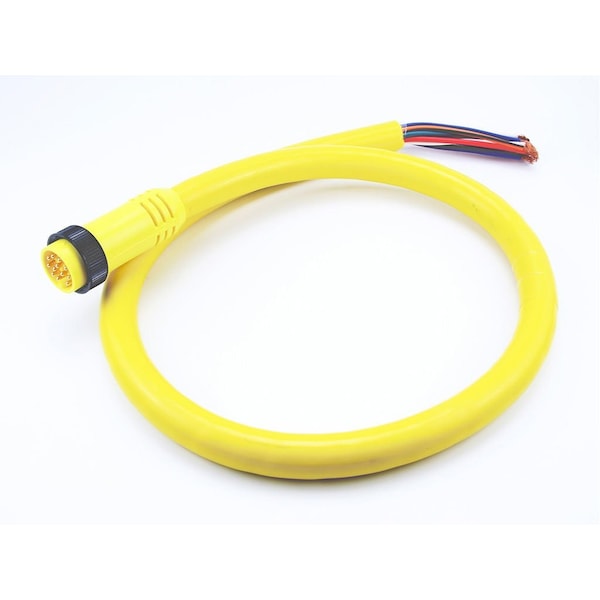

Conector Molex MC 12P MP 12 16/12 PVC para aplicaciones industriales. Cuenta con 12 pines y es ideal para usar con cables de calibre 16/12.
| Current - Maximum per Contact | 5 A |
|---|---|
| Orientation | Straight to Pigtail |
| Material - Plating Mating | Gold |
| Cable Diameter | 18.03mm (.710") |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Keyway | Single |
| Color - Cable Jacket | Yellow |
| Wire/Cable Type | STOOW |
| Voltage - Maximum | 600 V |
| Material - Connector Body | PVC |
| Coupling Style | Threaded |
| Wire Size AWG | 16 |
| Gender | Male-Pigtail |
| CSA | LR6837 |
| Temperature Range - Operating | -20°C to +105°C |
| Material - Cable Jacket | PVC |
| Poles | 12 |
| Cable Length | 3.66 m |
| UL | E152210 |
| Package Quantity | 1 |
