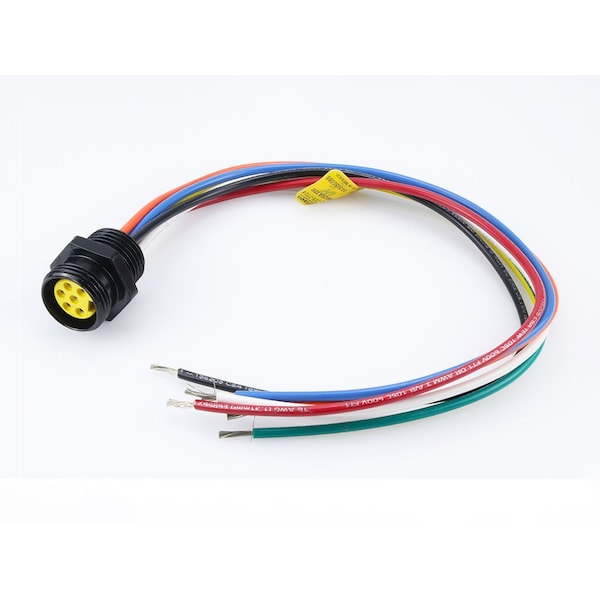

MC 6P FR 12IN 16/1 PVC
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.305 m |
| CSA | LR6837 |
| Mounting Thread Size | 1/2" - 14 NPT |
| UL | E152210 |
| Current - Maximum per Contact | 8 A |
| Poles | 6 |
| Wire Size AWG | 16 |
| Material - Component | Zinc Die-Cast with Black Epoxy |
| Coupling Type | External Thread |
| Gender | Female |
| Wire/Cable Type | UL 1015 |
| Voltage - Maximum | 600V AC/DC |
| Temperature Range - Operating | -20°C to +105°C |
| Keyway | Single |
| Orientation | Straight |
| Series | 130013 |
| Type | Single Ended |
| Product Name | Mini-Change |
| Panel Mount | Front |
| IP Rating | IP67 |
| Package Quantity | 1 |
