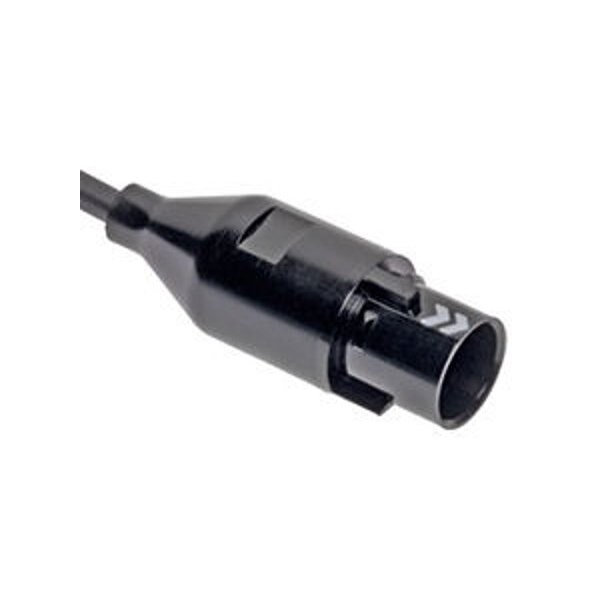

Conector macho circular de plástico médico desechable Medispectm, con llave Aa y 17 circuitos. Ideal para aplicaciones médicas y equipos desechables.
| Item | Pin & Sleeve Plug |
|---|---|
| Voltage Rating | 300V AC (RMS) |
| Housing Color | Black |
| Series | 172890 |
| Application | Wire-to-Wire |
| Orientation | Straight |
| Waterproof / Dustproof Type | IP50 |
| Temperature Range - Operating | -40 to 105 deg C |
| Keying to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Material - Metal | Copper Alloy |
| Material - Resin | Polycarbonate |
| Product Name | MPC |
| Gender | Male |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 1.6 A |
| Component Type | Plug |
| Plating min - Mating | 0.127µm |
| Waterproof / Dustproof | Yes |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 17 |
| Material - Plating Mating | Gold |
| Durability (mating cycles max) | 10000 |
| Termination Interface Style | Solder Cup |
| Package Quantity | 1 |
