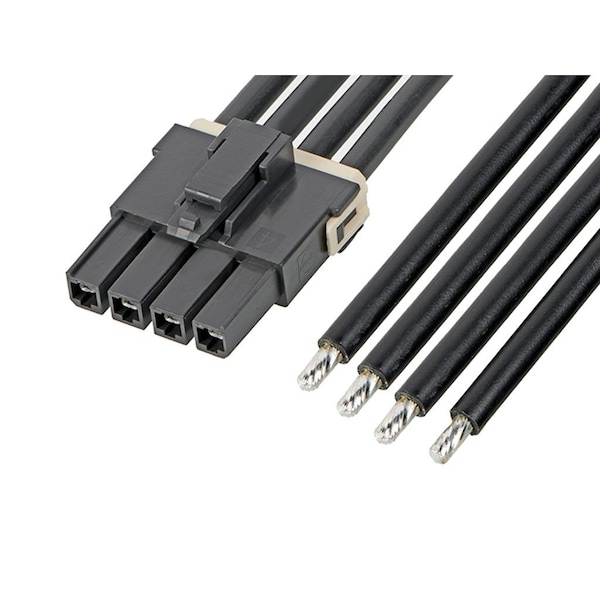

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin
| Cable Length | 150 mm |
|---|---|
| Series | 216401 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Type | Discrete Wire Assembly, High-Power Assembly |
| Material - Metal | High Conductivity Copper |
| Material - Plating Mating | Tin |
| Wire/Cable Type | UL 1015 |
| Single Ended | Yes |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 5.7 mm |
| Lock to Mating Part | Yes |
| Number of Rows | 1 |
| Current - Maximum per Contact | 25 A |
| Gender | Female-Pigtail |
| Circuits (Loaded) | 4 |
| Termination Interface: Style | Compression, Crimp |
| Material - Resin | Nylon |
| Wire Insulation Diameter | 4.06mm max. |
| Wire Size AWG | 12 |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Connector to Connector | Mega-Fit-to-Pigtail |
| Product Name | Mega-Fit |
| Assembly Configuration | Single Ended Connector |
| Overmolded | No |
| Color - Resin | Black |
| Package Quantity | 1 |
