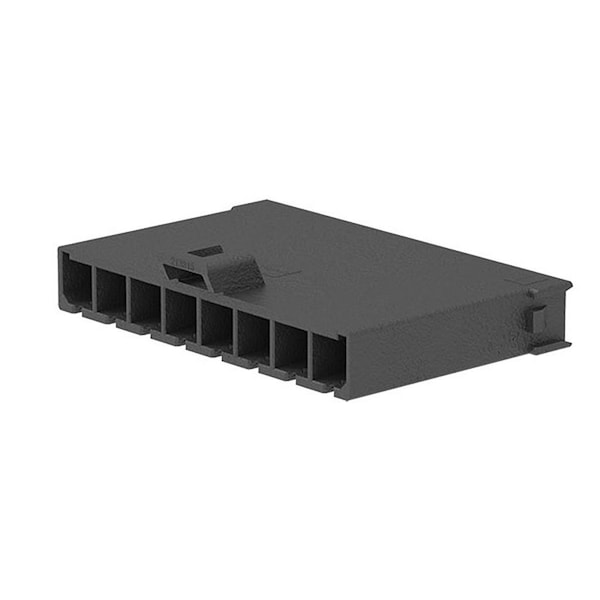

Mega-Fit Sr Free Hang Plug Hsg 1X8Ckt
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 213815 |
| Application | Power, Wire-to-Wire |
| Features | Glow-Wire Capable |
| Material | Nylon |
| Max. Temp. | 120 deg C |
| Connector Type | Plug |
| Hole Center to Center | 5.7 mm |
| Number of Contacts | 8 |
| UL | E29179 |
| Circuits (maximum) | 8 |
| Glow-Wire Capable | Yes |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C, -40° to +120°C |
| Pitch - Mating Interface | 5.7 mm |
| Product Name | Mega-Fit |
| Lock to Mating Part | Yes |
| Keying to Mating Part | None |
| Flammability | 94V-0 |
| Material - Resin | Nylon |
| Package Quantity | 1 |
