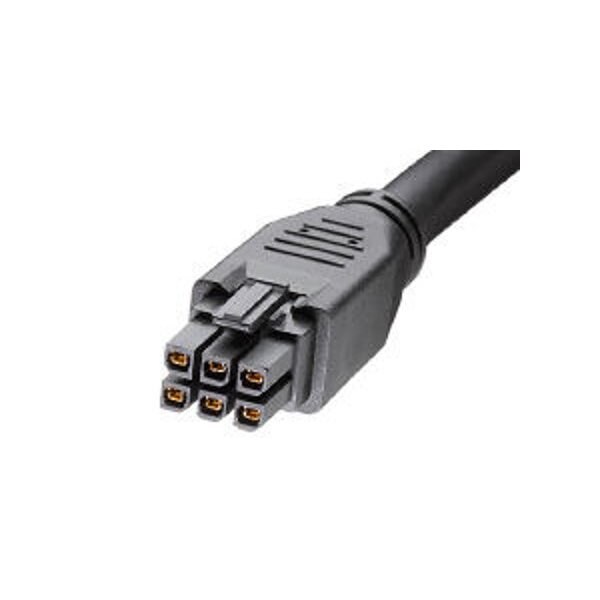

Mega-Fit-To-Mega-Fit Off-The-Shelf (Ots) Overmolded Cable Assembly, Dual Row
| Cable Length | 0.5 m |
|---|---|
| Series | 245136 |
| Application | Power, Wire-to-Board |
| Type | Overmolded Assembly |
| Pitch - Mating Interface | 5.7 mm |
| Material - Plating Mating | Gold |
| Wire Size AWG | 12 |
| Color - Resin | Black |
| Plating min - Termination | 0.381 um |
| Plating min - Mating | 0.381 um |
| Current - Maximum per Contact | 18.4 A |
| Circuits (Loaded) | 6 |
| Wire/Cable Type | UL 2464 |
| Termination Interface: Style | Compression, Crimp |
| Gender | Female-Female |
| Lock to Mating Part | Yes |
| Material - Metal | Copper Alloy |
| Material - Resin | PBT |
| Wire Insulation Diameter | 12.00mm |
| Voltage - Maximum | 300 V |
| Number of Rows | 2 |
| Material - Plating Termination | Matte Tin |
| Product Name | Mega-Fit |
| Single Ended | No |
| Connector to Connector | Mega-Fit-to-Mega-Fit |
| Overmolded | Yes |
| Assembly Configuration | Dual Ended Connectors |
| Package Quantity | 1 |
