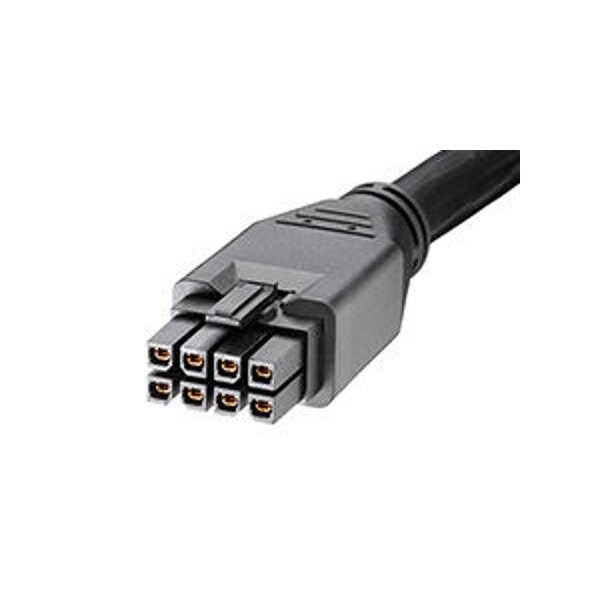

Mega-Fit-To-Mega-Fit Off-The-Shelf (Ots) Overmolded Cable Assembly, Dual Row
| Color | Black |
|---|---|
| Series | 245136 |
| Max. Voltage | 300 V AC |
| Application | Power, Wire-to-Board |
| Length | 2 m |
| Material | PBT |
| Connector Type | Female-Female |
| Terminal Type | Crimp, Compression |
| Number of Contacts | 8 |
| Number of Rows | 2 |
| Type | Overmolded Assembly |
| Max. Insulation Dia. | 13 mm |
| Wire Range | 12 AWG |
| Current Rating | 18.4 A |
| Hole Center to Center | 5.7 mm |
| Contact Finish | Gold Plated |
| Terminal Finish | Matte Tin Plated |
| Contact Plating Thickness | 0.381 um |
| Material - Metal | Alloy |
| Wire/Cable Type | UL 2464 |
| Wire Size (AWG) | 12 |
| Connector to Connector | Mega-Fit-to-Mega-Fit |
| Current - Maximum per Contact | 11 A |
| Material - Resin | PBT |
| Single Ended | No |
| Plating min - Mating | 0.381 um |
| Material - Plating Mating | Gold |
| Overmolded | Yes |
| Wire Insulation Diameter | 13.00mm |
| Material - Plating Termination | Matte Tin |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 5.7 mm |
| Assembly Configuration | Dual Ended Connectors |
| Circuits (Loaded) | 8 |
| Product Name | Mega-Fit |
| Cable Length | 2 m |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
