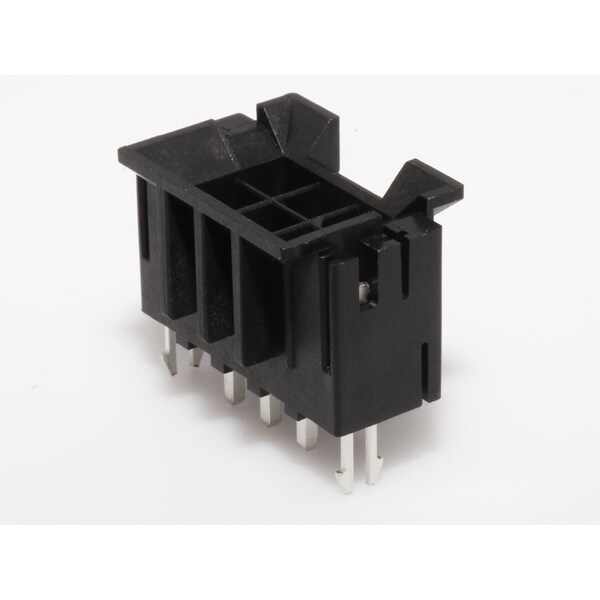

MF SMC Vert Hdr w/.094 Clip Gold 6Ckt
| Material - Metal | Brass |
|---|---|
| Process Temperature max. C | 260 |
| Orientation | Vertical |
| Current - Maximum per Contact | 13.0A |
| Duration at Max. Process Temperature (seconds) | 5 |
| Color - Resin | Black |
| PCB Thickness - Recommended | 2.40mm |
| Pitch - Termination Interface | 4.20mm |
| Shrouded | Partial |
| PC Tail Length | 4.42 mm |
| Pitch - Mating Interface | 4.20mm |
| Plating min - Termination | 0.762 um |
| Material - Resin | High Temperature Thermoplastic |
| Voltage - Maximum | 600 V |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Surface Mount Compatible (SMC) | Yes |
| Circuits (Loaded) | 6 |
| Temperature Range - Operating | -40 to 105 deg C |
| Flammability | 94V-0 |
| Max. Cycles at Max. Process Temperature | 1 |
| Plating min - Mating | 0.762 um |
| Material - Plating Termination | Gold |
| Circuits (maximum) | 6 |
| Number of Rows | 2 |
| CSA | LR19980 |
| UL | E29179 |
| PCB Locator | Yes |
| Durability (mating cycles max) | 30 |
| Polarized to PCB | Yes |
| Termination Interface: Style | Through Hole |
| Package Quantity | 1 |
