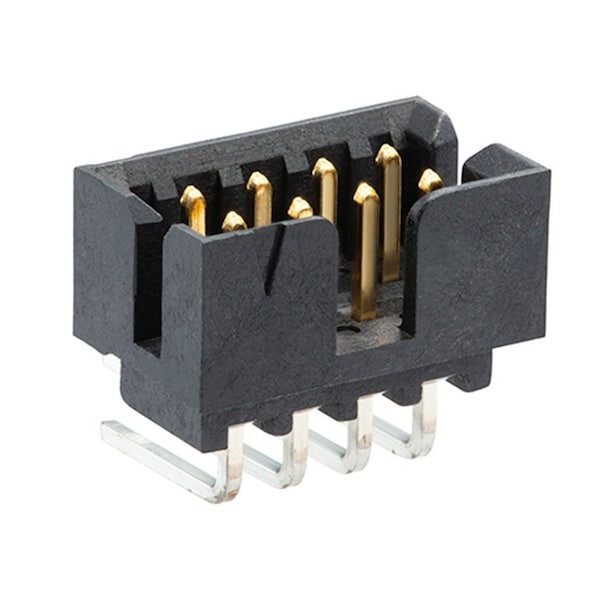

Conector Molex MGrid Hdr Shrd RA/Lck .38AuLF 10Ckt, ideal para aplicaciones de conexión eléctrica en equipos electrónicos.
| Circuits (maximum) | 10 |
|---|---|
| Termination Interface: Style | Through Hole |
| Color - Resin | Black |
| Number of Rows | 2 |
| PCB Thickness - Recommended | 1.6 mm |
| Orientation | Right Angle |
| Duration at Max. Process Temperature (seconds) | 11 |
| Max. Cycles at Max. Process Temperature | 1 |
| Pitch - Mating Interface | 2 mm |
| Material - Resin | Nylon |
| PC Tail Length | 2.16 mm |
| Current - Maximum per Contact | 2 A |
| Plating min - Termination | 1.905µm |
| Flammability | 94V-0 |
| Lock to Mating Part | Yes |
| Process Temperature max. C | 265 |
| Shrouded | Fully |
| Voltage - Maximum | 125 V |
| Durability (mating cycles max) | 100 |
| Plating min - Mating | 0.381µm |
| Temperature Range - Operating | -55° to +105°C |
| Material - Plating Mating | Gold |
| Material - Metal | Phosphor Bronze |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 10 |
| Pitch - Termination Interface | 2 mm |
| UL | E29179 |
| Surface Mount Compatible (SMC) | Yes |
| CSA | LR19980 |
| Package Quantity | 1 |
