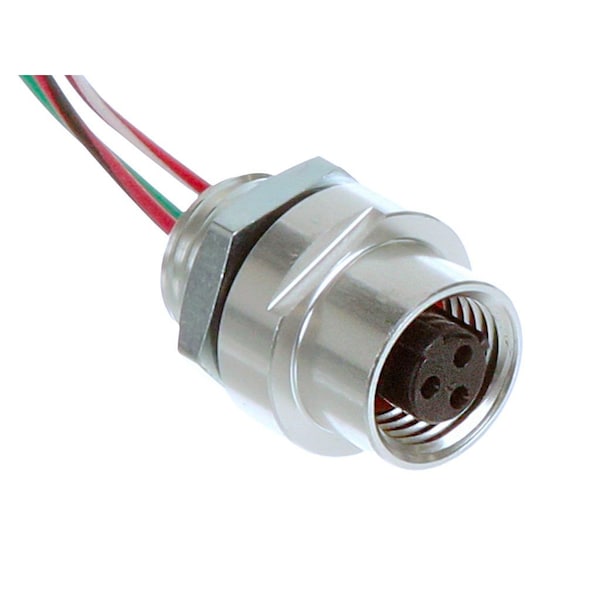

MIC 3P F/FR 12IN. 1/4NPT #22 P
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.305 m |
| Product Name | Micro-Change |
| Mounting Thread Size | 1/4" - 18 NPT |
| Temperature Range - Operating | -20° to +80°C |
| IP Rating | IP67 |
| Keyway | Dual |
| Current - Maximum per Contact | 4 A |
| Wire Size (AWG) | 22 |
| Voltage - Maximum | 250V AC/DC |
| Coupling Type | Internal Thread |
| Gender | Female |
| Series | 120074 |
| Orientation | Straight |
| Material - Component | Annodized Aluminum |
| Poles | 3 pole |
| UL | E152210 |
| Wire/Cable Type | UL 1061 |
| CSA | LR6837 |
| Panel Mount | Front |
| Type | Single Ended |
| Package Quantity | 1 |
