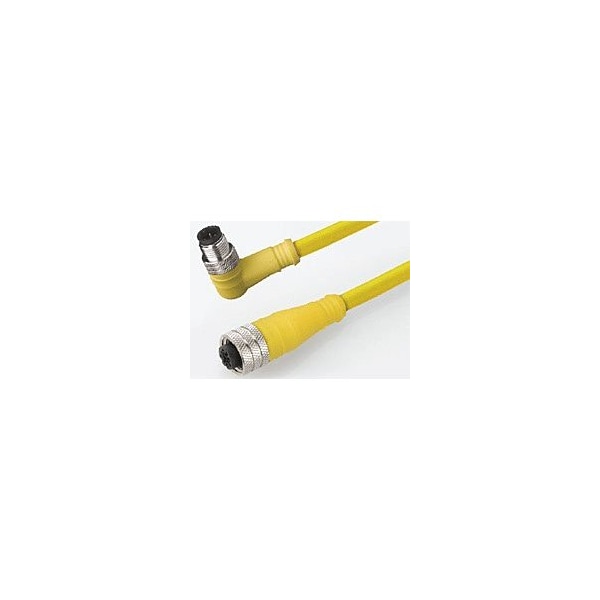

MIC 4P M/MFE 5M 90/ST 18/4 TPE
| Temperature Range - Operating | -20° to +105°C |
|---|---|
| UL | E152210 |
| Connector End B | Micro-Change |
| Wire Size (AWG) | 18 |
| Product Name | Micro-Change |
| Material - Cable Jacket | TPE |
| Connector End A | Micro-Change (M12) |
| Cable Length | 5 m |
| Color - Cable Jacket | Yellow |
| Material - Contact | Copper Alloy |
| Voltage - Maximum | 250V AC/DC |
| Cable Diameter | 7.14mm (.281") |
| Poles | 4 |
| Keyway | Single |
| IP Rating | IP67 |
| Series | 120066 |
| Material - Coupling Nut | Nickel-plated Brass |
| Type | Double Ended |
| Coupling Style | Threaded |
| LED Indicator | No |
| Gender | Female-Male |
| Material - O-Ring | Fluoro-elastomer |
| CSA | LR6837 |
| Material - Connector Body | TPE |
| Orientation | 90° to Straight |
| Current - Maximum per Contact | 4 A |
| Wire/Cable Type | ITC, PLTC |
| Material - Plating Mating | Gold |
| Package Quantity | 1 |
