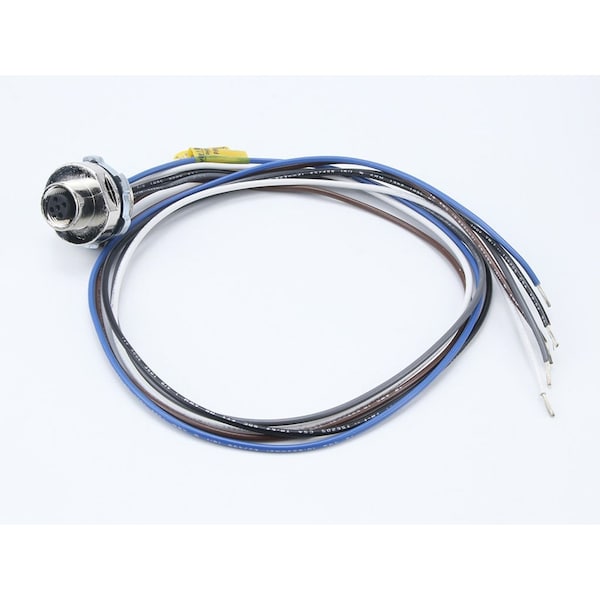

El cable Molex MIC 5P F/FR 2M 1/2NPT #18 PVC es ideal para aplicaciones eléctricas que requieren resistencia y durabilidad.
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 2 m |
| Gender | Female |
| Orientation | Straight |
| Temperature Range - Operating | -20° to +105°C |
| Voltage - Maximum | 250V AC/DC |
| Coupling Type | Internal Thread |
| Wire Size (AWG) | 18 |
| Series | 120070 |
| Poles | 5 |
| Keyway | Single |
| UL | E152210 |
| Mounting Thread Size | 1/2" - 14 NPT |
| Current - Maximum per Contact | 4 A |
| Material - Component | Nickel-plated Zinc Die-Cast |
| Wire/Cable Type | UL 1569 |
| Panel Mount | Front |
| Product Name | Micro-Change |
| IP Rating | IP67 |
| Type | Single Ended |
| CSA | LR6837 |
| Package Quantity | 1 |
