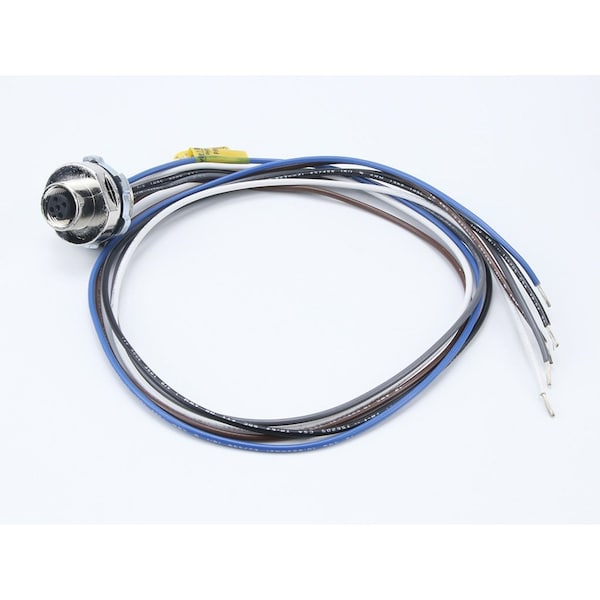

MIC 5P F/FR .5M 1/2NPT #18 PVC
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.5 m |
| Panel Mount | Front |
| Series | 120070 |
| Type | Single Ended |
| Voltage - Maximum | 250V AC/DC |
| Keyway | Single |
| Material - Component | Nickel-plated Zinc Die-Cast |
| Temperature Range - Operating | -20° to +105°C |
| Gender | Female |
| Poles | 5 |
| Mounting Thread Size | 1/2" - 14 NPT |
| IP Rating | IP67 |
| Current - Maximum per Contact | 4 A |
| Coupling Type | Internal Thread |
| Wire Size (AWG) | 18 |
| Orientation | Straight |
| Wire/Cable Type | UL 1569 |
| Product Name | Micro-Change |
| Package Quantity | 1 |
