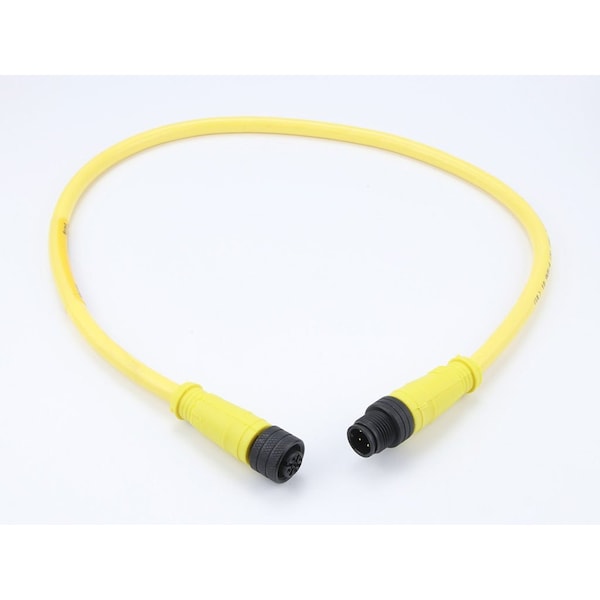

MIC 5P M/MFE 10M 18/5 TPE
| Keyway | Single |
|---|---|
| Cable Diameter | 6.86mm (.270") |
| Voltage - Maximum | 250V AC/DC |
| Wire/Cable Type | PLTC-ER |
| Orientation | Straight to Straight |
| Current - Maximum per Contact | 4 A |
| UL | E152210 |
| Material - Coupling Nut | Nickel-plated Brass |
| Color - Cable Jacket | Yellow |
| Wire Size AWG | 18 |
| Material - O-Ring | Fluoro-elastomer |
| Temperature Range - Operating | -20°C to +105°C |
| Material - Plating Mating | Gold |
| Material - Cable Jacket | TPE |
| Poles | 5 |
| Gender | Female-Male |
| Coupling Style | Threaded |
| Material - Connector Body | TPE |
| CSA | LR6837 |
| Cable Length | 10 m |
| IP Rating | IP67 |
| Connector End B | Micro-Change |
| Connector End A | Micro-Change (M12) |
| LED Indicator | No |
| Product Name | Micro-Change |
| Series | 120066 |
| Type | Double Ended |
| Material - Contact | Brass |
| Package Quantity | 1 |
