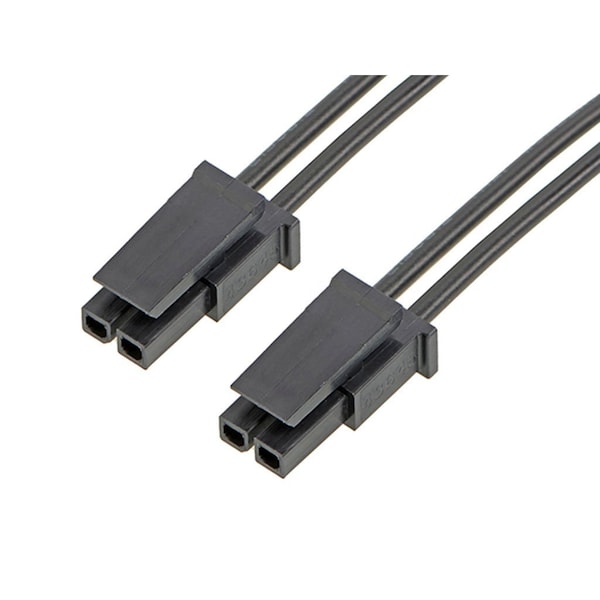

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly
| Type | Discrete Wire Assembly |
|---|---|
| Cable Length | 150 mm |
| Series | 214750 |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Color - Resin | Black |
| Gender | Female-Female |
| Material - Resin | Nylon |
| Lock to Mating Part | Yes |
| Wire/Cable Type | Discrete Wire, UL 10002 |
| Wire Size AWG | 18 |
| Material - Plating Mating | Tin |
| Circuits (Loaded) | 2 |
| Current - Maximum per Contact | 8.5 A |
| Plating min - Mating | 1.016 um |
| Plating min - Termination | 1.016 um |
| Material - Metal | Phosphor Bronze |
| Pitch - Mating Interface | 3 mm |
| Number of Rows | 1 |
| Material - Plating Termination | Tin |
| Wire Insulation Diameter | 1.85mm max. |
| Product Name | Micro-Fit 3.0 |
| Assembly Configuration | Dual Ended Connectors |
| Voltage - Maximum | 300V AC/DC |
| Overmolded | No |
| Termination Interface Style | Crimp or Compression |
| Connector to Connector | Micro-Fit 3.0 Both Ends |
| Single Ended | No |
| Package Quantity | 1 |
