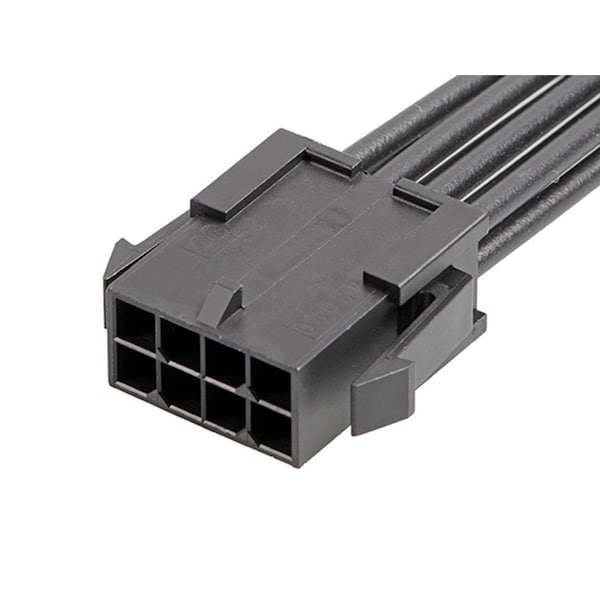

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly
| Series | 214757 |
|---|---|
| Type | Discrete Wire Assembly |
| Application | Power, Wire-to-Wire |
| Cable Length | 300 mm |
| Material - Plating Mating | Gold |
| Color - Resin | Black |
| Number of Rows | 2 |
| Wire/Cable Type | UL 1061 |
| Termination Interface: Style | Compression, Crimp |
| Lock to Mating Part | Yes |
| Plating min - Termination | 2.54 um |
| Gender | Male-Male |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 8.5 A |
| Plating min - Mating | 0.762 um |
| Circuits (Loaded) | 8 |
| Material - Resin | Nylon |
| Wire Insulation Diameter | 1.85mm max. |
| Material - Metal | Phosphor Bronze |
| Wire Size AWG | 18 |
| Pitch - Mating Interface | 3 mm |
| Assembly Configuration | Dual Ended Connectors |
| Overmolded | No |
| Product Name | Micro-Fit 3.0 |
| Connector to Connector | Micro-Fit 3.0 Both Ends |
| Voltage - Maximum | 300V AC/DC |
| Single Ended | No |
| Package Quantity | 1 |
