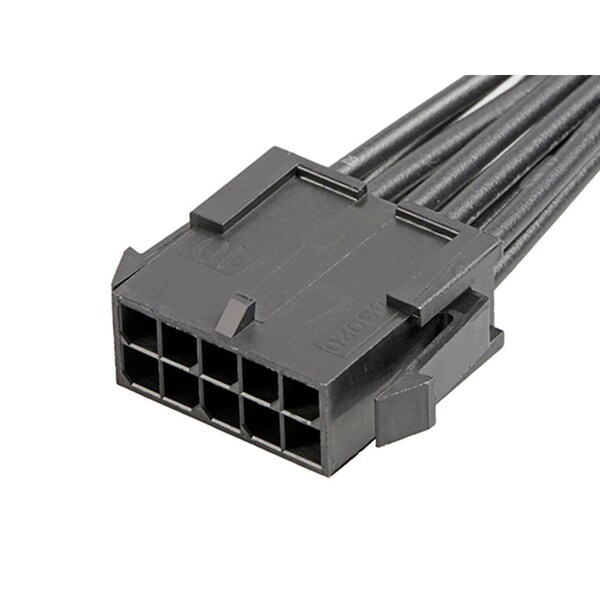

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly
| Color | Black |
|---|---|
| Series | 214757 |
| Application | Power, Wire-to-Wire |
| Length | 150 mm |
| Material | Nylon |
| Connector Type | Male-Male |
| Max. Insulation Dia. | 1.85 mm |
| Hole Center to Center | 3 mm |
| Type | Discrete Wire Assembly |
| Terminal Type | Crimp, Compression |
| Current Rating | 8.5 A |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Number of Contacts | 10 |
| Wire Range | 18 AWG |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 um |
| Wire Insulation Diameter | 1.85mm max. |
| Wire Size (AWG) | 18 |
| Assembly Configuration | Dual Ended Connectors |
| Circuits (Loaded) | 10 |
| Cable Length | 150 mm |
| Material - Plating Mating | Gold |
| Wire/Cable Type | UL 1061 |
| Lock to Mating Part | Yes |
| Material - Metal | Phosphor Bronze |
| Product Name | Micro-Fit 3.0 |
| Voltage - Maximum | 300V AC/DC |
| Material - Resin | Nylon |
| Single Ended | No |
| Connector to Connector | Micro-Fit 3.0 Both Ends |
| Pitch - Mating Interface | 3 mm |
| Material - Plating Termination | Tin |
| Plating min - Mating | 0.762 um |
| Current - Maximum per Contact | 8.5 A |
| Overmolded | No |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
