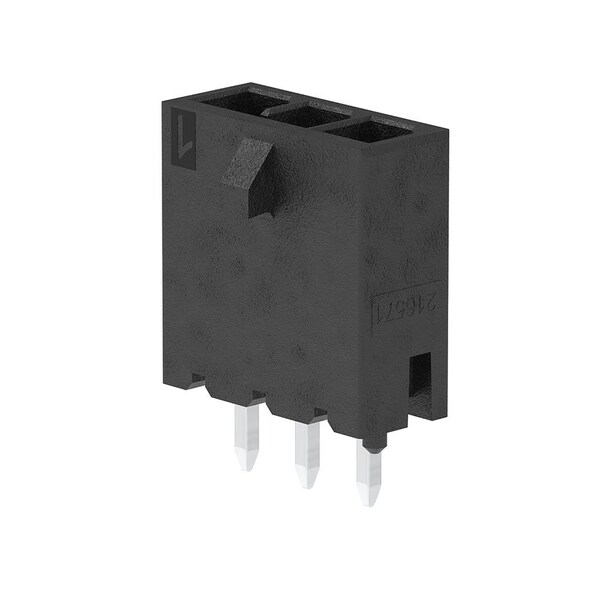

Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X3
| Number of Rows | 1 |
|---|---|
| Series | 216571 |
| Application | Power, Wire to-Board |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Max-Duration | 30 |
| UL | E29179 |
| PC Tail Length | 3.18 mm |
| Orientation | Vertical |
| CSA | LR19980 |
| Breakaway | No |
| Material - Plating Termination | Matte Tin |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Color - Resin | Black |
| Product Name | Micro-Fit+ |
| Durability (mating cycles max) | 200 |
| Current - Maximum per Contact | 12.5 A |
| Component Type | PCB Header |
| Flammability | 94V-0 |
| Material - Plating Mating | Gold |
| Material - Resin | Liquid Crystal Polymer |
| Plating min - Mating | 0.762 um |
| Circuits (Loaded) | 3 |
| PCB Thickness - Recommended | 1.57 mm |
| First Mate / Last Break | No |
| Shrouded | Yes |
| Pitch - Mating Interface | 3 mm |
| PCB Retention | Yes |
| Polarized to PCB | Yes |
| Max-Temp | 260 |
| Material - Metal | Alloy |
| Lock to Mating Part | Yes |
| Termination Interface Style | Through Hole |
| Glow-Wire Capable | Yes |
| Keying to Mating Part | Yes |
| Max-Cycle | 3 |
| Package Quantity | 1 |
