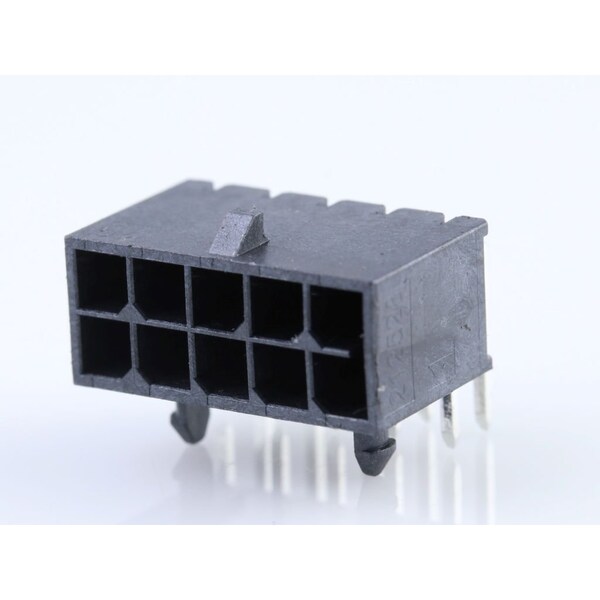

Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 10 Circuits, Matt
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 212528 |
| Max. Voltage | 600V AC/DC |
| Application | Power, Wire to-Board |
| Max. Temp. | 105 deg C |
| Material | Crystal Polymer |
| Terminal Type | Through Hole |
| Hole Center to Center | 3 mm |
| Features | Glow-Wire Capable |
| Current Rating | 12.5 A |
| Terminal Finish | Matte Tin Plated |
| Contact Finish | Matte Tin Plated |
| Number of Contacts | 10 |
| Pitch - Mating Interface | 3 mm |
| Circuits (Loaded) | 10 |
| Temperature Range - Operating | -40° to +105°C |
| Current - Maximum per Contact | 12.5 A |
| Material - Plating Termination | Matte Tin |
| Material - Resin | Liquid Crystal Polymer |
| Orientation | Right Angle |
| Glow-Wire Capable | Yes |
| Product Name | Micro-Fit+ |
| Breakaway | No |
| First Mate / Last Break | No |
| PC Tail Length | 3.18 mm |
| Durability (mating cycles max) | 25 |
| Keying to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Material - Plating Mating | Matte Tin |
| Component Type | PCB Header |
| PCB Thickness - Recommended | 1.57 mm |
| Polarized to PCB | Yes |
| Lock to Mating Part | Yes |
| CSA | LR19980 |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Shrouded | Yes |
| Flammability | 94V-0 |
| Material - Metal | Alloy |
| UL | E29179 |
| Package Quantity | 1 |
