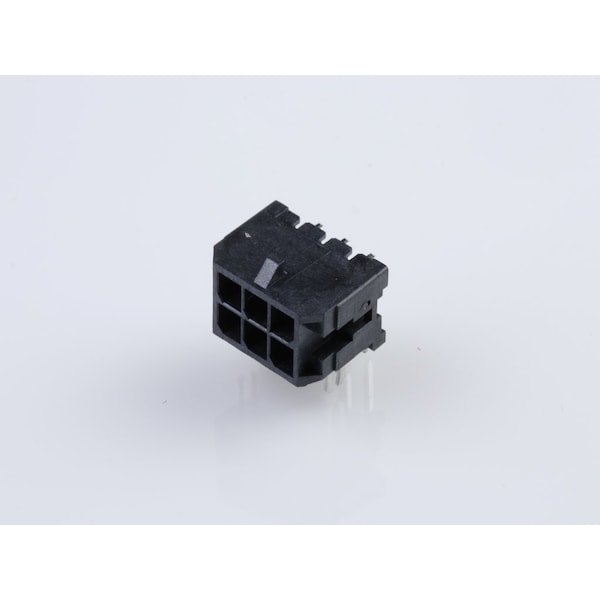

Microfit 3.0 RA PTH w/clip DR Tin 6 Ckt
| Material - Plating Termination | Tin |
|---|---|
| Temperature Range - Operating | -40° to +105°C |
| PCB Retention | Yes |
| Termination Interface: Style | Through Hole |
| CSA | LR19980 |
| Glow-Wire Capable | Yes |
| Color - Resin | Black |
| Material - Metal | Brass |
| Polarized to PCB | Yes |
| Plating min - Mating | 0.254µm |
| Flammability | 94V-0 |
| Current - Maximum per Contact | 8.5 A |
| PCB Locator | Yes |
| Max. Cycles at Max. Process Temperature | 3 |
| Pitch - Mating Interface | 3 mm |
| Orientation | Right Angle |
| PCB Thickness - Recommended | 1.6 mm |
| UL | E29179 |
| Voltage - Maximum | 600 V |
| Circuits (maximum) | 6 |
| Shrouded | Fully |
| Circuits (Loaded) | 6 |
| Process Temperature max. C | 260 |
| Material - Resin | High Temperature Thermoplastic |
| Material - Plating Mating | Tin |
| Durability (mating cycles max) | 30 |
| Number of Rows | 2 |
| Duration at Max. Process Temperature (seconds) | 30 |
| Mated Height | 10.06 mm |
| Surface Mount Compatible (SMC) | Yes |
| Package Quantity | 1 |
