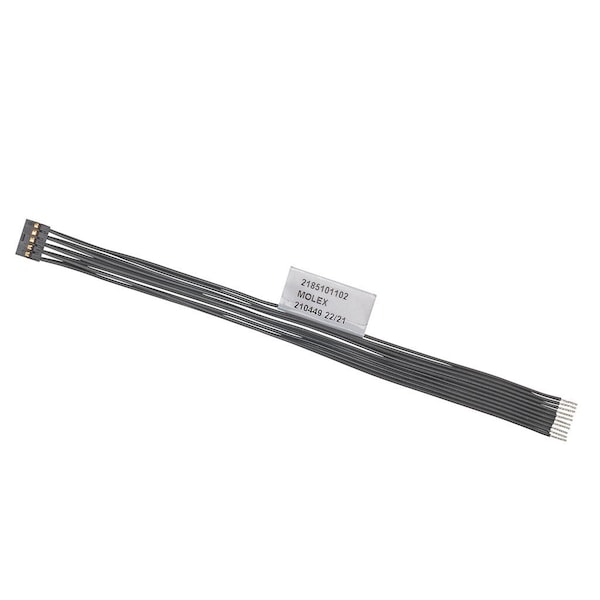

Milli-Grid Dr R-S 10Ckt 100Mm Disc Sn
| Series | 218510 |
|---|---|
| Number of Rows | 2 |
| Type | Discrete Wire Assembly |
| Pitch - Mating Interface | 2 mm |
| Circuits (Loaded) | 10 |
| Material - Resin | Polyester |
| Current - Maximum per Contact | 2 A |
| Color - Resin | Black |
| Voltage - Maximum | 125V AC (RMS)/DC |
| Material - Metal | Alloy |
| Wire Insulation Diameter | 1.40mm max. |
| Gender | Female-Pigtail |
| Cable Length | 100 mm |
| Wire/Cable Type | UL 10002 |
| Material - Plating Mating | Matte Tin |
| Assembly Configuration | Single Ended Connector |
| Product Name | Milli-Grid |
| Single Ended | Yes |
| Termination Interface Style | Compression, Crimp |
| Lock to Mating Part | Yes |
| Wire Size (AWG) | 24 |
| Package Quantity | 1 |
