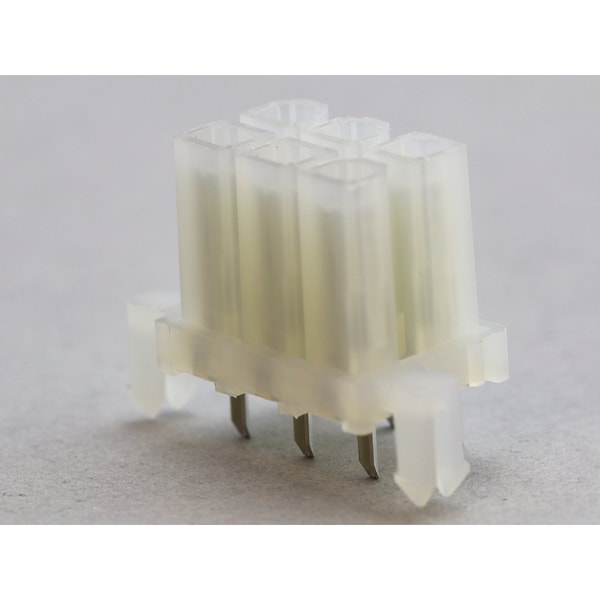

Mini-Fit BMI Rec Hdr Assy V-2 6Ckt
| Polarized to Mating Part | Yes |
|---|---|
| PCB Thickness - Recommended | 1 mm |
| UL | E29179 |
| Material - Metal | Brass |
| Current - Maximum per Contact | 9 A |
| PCB Retention | Yes |
| Number of Rows | 2 |
| Termination Interface: Style | Through Hole |
| Orientation | Vertical |
| Process Temperature max. C | 240 |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 4.2 mm |
| Circuits (maximum) | 6 |
| Flammability | 94V-2 |
| Durability (mating cycles max) | 30 |
| CSA | LR19980 |
| Color - Resin | Natural |
| Max. Cycles at Max. Process Temperature | 1 |
| Voltage - Maximum | 600V AC (RMS)/DC |
| PCB Locator | Yes |
| Duration at Max. Process Temperature (seconds) | 5 |
| Circuits (Loaded) | 6 |
| Material - Plating Mating | Tin |
| Guide to Mating Part | Yes |
| Pitch - Termination Interface | 4.2 mm |
| Polarized to PCB | Yes |
| Material - Resin | Nylon |
| Package Quantity | 1 |
