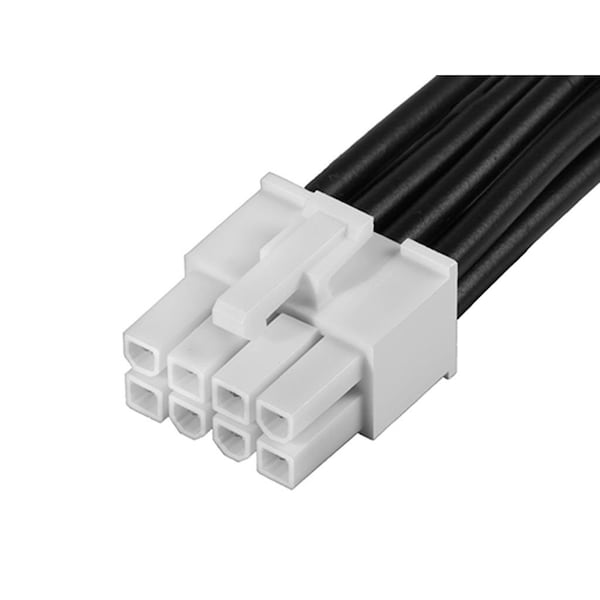

Mini-Fit Jr. Female-To-Mini-Fit Jr. Female Off-The-Shelf (Ots) Cable Assembly
| Cable Length | 600 mm |
|---|---|
| Series | 215325 |
| Type | Discrete Wire Assembly |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 4.2 mm |
| Material - Plating Mating | Tin |
| Material - Resin | Nylon |
| Wire Insulation Diameter | 1.80-3.10mm |
| Wire Size AWG | 16 |
| Number of Rows | 2 |
| Voltage - Maximum | 600 V |
| Material - Metal | Brass |
| Wire/Cable Type | UL 1015 |
| Lock to Mating Part | Yes |
| Plating min - Termination | 0.889 um |
| Circuits (Loaded) | 8 |
| Plating min - Mating | 0.889 um |
| Current - Maximum per Contact | 9 A |
| Gender | Female-Female |
| Color - Resin | Black |
| Termination Interface: Style | Compression, Crimp |
| Single Ended | No |
| Overmolded | No |
| Connector to Connector | Mini-Fit Jr. Both Ends |
| Product Name | Mini-Fit Jr. |
| Assembly Configuration | Dual Ended Connectors |
| Package Quantity | 1 |
