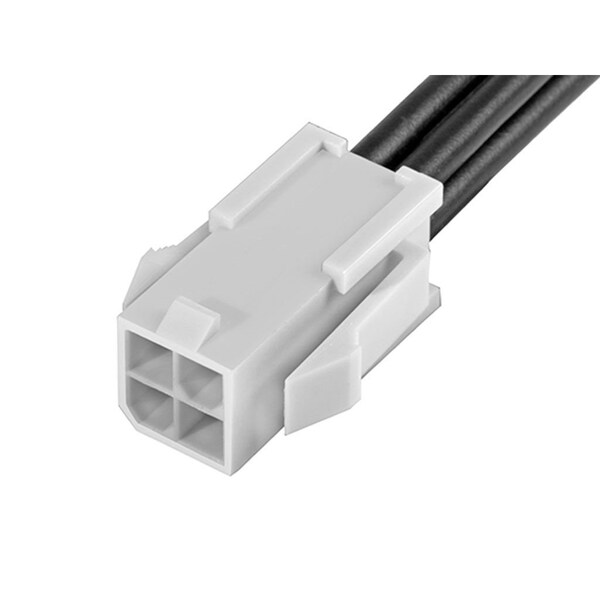

Mini-Fit Jr. Male-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Dual Row
| Color | Black |
|---|---|
| Series | 215328 |
| Max. Voltage | 600 V |
| Application | Power, Wire-to-Wire |
| Length | 600 mm |
| Connector Type | Male-Pigtail |
| Material | Nylon |
| Features | Single Ended |
| Wire Range | 16 AWG |
| Hole Center to Center | 4.2 mm |
| Current Rating | 9 A |
| Contact Finish | Gold Plated |
| Terminal Type | Crimp, Compression |
| Number of Rows | 2 |
| Max. Insulation Dia. | 3.1 mm |
| Number of Contacts | 4 |
| Type | Discrete Wire Assembly |
| Contact Plating Thickness | 0.762 um |
| Terminal Finish | Tin Plated |
| Single Ended | Yes |
| Circuits (Loaded) | 4 |
| Wire Size (AWG) | 16 |
| Wire Insulation Diameter | 1.80-3.10mm |
| Material - Resin | Nylon |
| Assembly Configuration | Single Ended Connector |
| Material - Plating Termination | Tin |
| Product Name | Mini-Fit Jr. |
| Wire/Cable Type | UL 1015 |
| Material - Metal | Brass |
| Material - Plating Mating | Gold |
| Cable Length | 600 mm |
| Current - Maximum per Contact | 9 A |
| Pitch - Mating Interface | 4.2 mm |
| Lock to Mating Part | Yes |
| Plating min - Mating | 0.762 um |
| Overmolded | No |
| Connector to Connector | Mini-Fit Jr.-to-Pigtail |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
