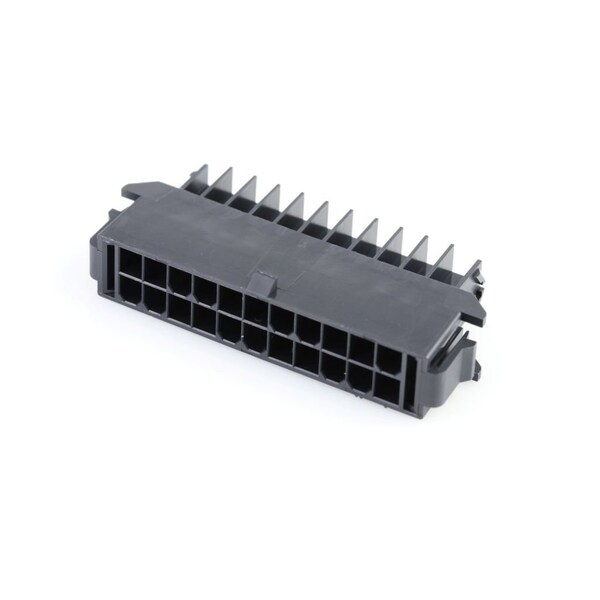

La carcasa de enchufe Mini-Fit TPA2 de 4.20 mm de paso, doble fila, es capaz de resistir al hilo incandescente UL 94V-2. Fabricada por Molex, esta carcasa cumple con los estándares de calidad más exigentes.
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 172767 |
| Application | Power, Wire-to-Wire, Wire-to-Board |
| Hole Center to Center | 4.2 mm |
| Connector Type | Plug |
| Max. Temp. | 105 deg C |
| Material | Nylon |
| Features | Glow-Wire Capable |
| Number of Contacts | 22 |
| Product Name | Mini-Fit TPA2 |
| Pitch - Mating Interface | 4.2 mm |
| Material - Resin | Nylon |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| Flammability | 94V-0 |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| Panel Mount | Yes |
| Lock to Mating Part | Yes |
| Glow-Wire Capable | Yes |
| Circuits (maximum) | 22 |
| Package Quantity | 1 |
