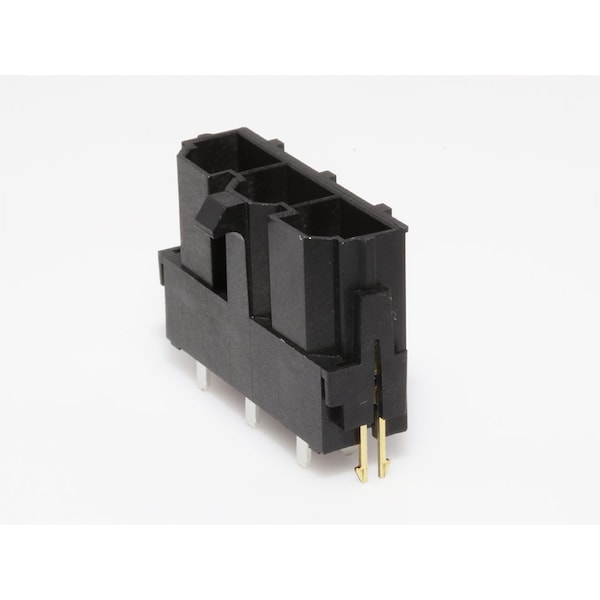

Minifit Sr Hdr Vert 250 Clip 3 Ckt Tin
| Number of Rows | 1 |
|---|---|
| Series | 42819 |
| Application | Power, Wire to-Board |
| Material - Metal | Brass |
| Circuits (Loaded) | 3 |
| Plating min - Mating | 2.54 um |
| Pitch - Mating Interface | 10 mm |
| Voltage - Maximum | 600 V |
| Durability (mating cycles max) | 30 |
| Material - Resin | High Temperature Thermoplastic |
| CSA | LR19980 |
| Lock to Mating Part | Yes |
| Color - Resin | Black |
| Keying to Mating Part | None |
| Max-Duration | 30 |
| UL | E29179 |
| PCB Locator | Yes |
| Material - Plating Mating | Tin |
| Orientation | Vertical |
| Glow-Wire Capable | No |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 50 A |
| Material - Plating Termination | Tin |
| Max-Cycle | 3 |
| PCB Thickness - Recommended | 6.35 mm |
| Breakaway | No |
| Component Type | PCB Header |
| PC Tail Length | 8.3 mm |
| Flammability | 94V-0 |
| Stackable | No |
| Termination Interface Style | Through Hole |
| Max-Temp | 235 |
| Temperature Range - Operating | -40° to +105°C |
| PCB Retention | Yes |
| Guide to Mating Part | No |
| Shrouded | Fully |
| First Mate / Last Break | No |
| Polarized to PCB | Yes |
| Product Name | Mini-Fit Sr. |
| Package Quantity | 1 |
