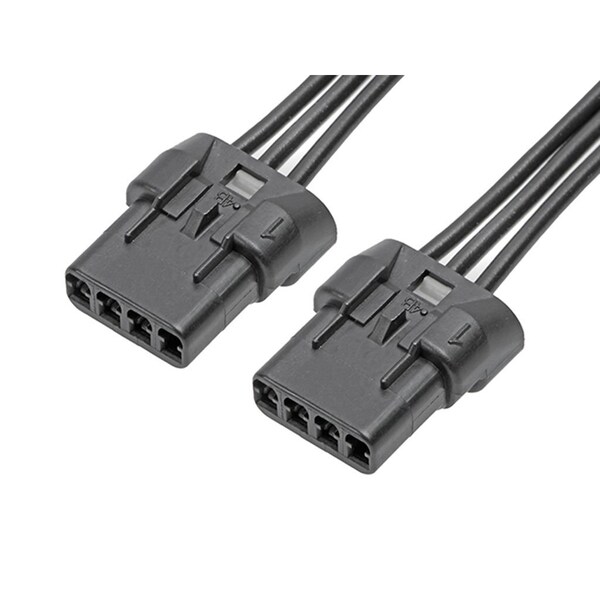

Mizu-P25 Female-To-Mizu-P25 Female Cable Assembly, 2.50Mm
| Color | Black |
|---|---|
| Min. Single Wire Size | 22 AWG |
| Max. Single Wire Size | 20 AWG |
| Series | 215310 |
| Max. Voltage | 125 V |
| Application | Signal, Wire-to-Wire |
| Length | 300 mm |
| Connector Type | Female-Female |
| Material | Polyester |
| Number of Rows | 1 |
| Terminal Type | Crimp, Compression |
| Wire Type | PVC |
| Type | Discrete Wire Assembly, Sealed Assembly |
| Number of Contacts | 4 |
| Hole Center to Center | 2.5 mm |
| Current Rating | 4 A |
| Max. Insulation Dia. | 1.9 mm |
| Contact Finish | Tin Plated |
| Current - Maximum per Contact | 4 A |
| Material - Resin | Polyester |
| Connector to Connector | Mizu-P25-to-Mizu-P25 |
| Lock to Mating Part | Yes |
| Single Ended | No |
| Wire Insulation Diameter | 1.40-1.90mm |
| Overmolded | No |
| Product Name | Mizu-P25 Waterproof |
| Pitch - Mating Interface | 2.5 mm |
| Assembly Configuration | Dual Ended Connectors |
| Cable Length | 300 mm |
| Circuits (Loaded) | 4 |
| Material - Metal | Phosphor Bronze |
| Wire Size (AWG) | 20, 22 |
| Material - Plating Mating | Tin |
| Country of Origin (subject to change) | India |
| Package Quantity | 1 |
