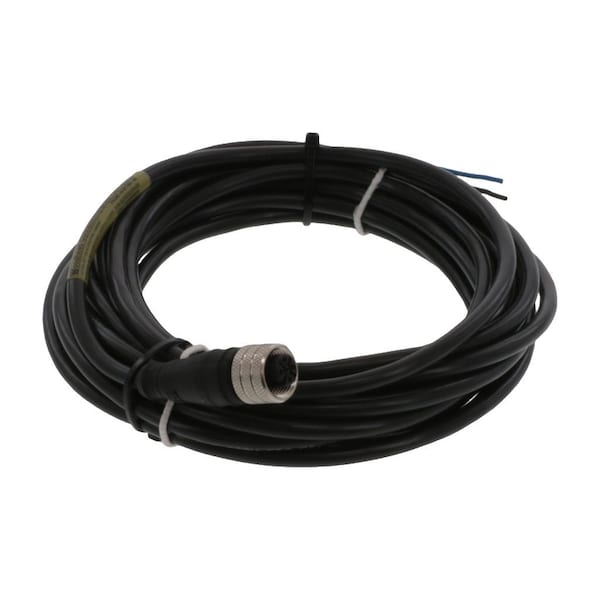

MMC-4P-5W-FE-ST-5M-PUR-LSOH significa Cable Ethernet industrial de 4 pares, con conector de montaje en campo, de 5 metros de longitud, color morado y recubrimiento de bajo humo cero halógenos.
| Orientation | Straight to Pigtail |
|---|---|
| Cable Length | 5 m |
| Series | 120065 |
| Keyway | Single |
| Type | Single Ended |
| IP Rating | IP67 |
| Material - Coupling Nut | Nickel-plated Brass |
| Voltage - Maximum | 250V AC/DC |
| Current - Maximum per Contact | 4 A |
| Poles | 4 |
| UL | E152210 |
| Material - O-Ring | Fluoro-elastomer |
| Gender | Female-Pigtail |
| Color - Cable Jacket | Black |
| Wire/Cable Type | UL 21198 |
| Material - Cable Jacket | PUR |
| LED Indicator | No |
| Coupling Style | Threaded |
| Temperature Range - Operating | -25°C to +80°C |
| Material - Plating Mating | Gold |
| Cable Diameter | 4.7 mm |
| Material - Connector Body | PUR |
| Material - Contact | Copper Alloy |
| Wire Size (AWG) | 22 |
| Connector End B | Pigtail |
| Product Name | Micro-Change |
| Connector End A | Micro-Change |
| Package Quantity | 1 |
