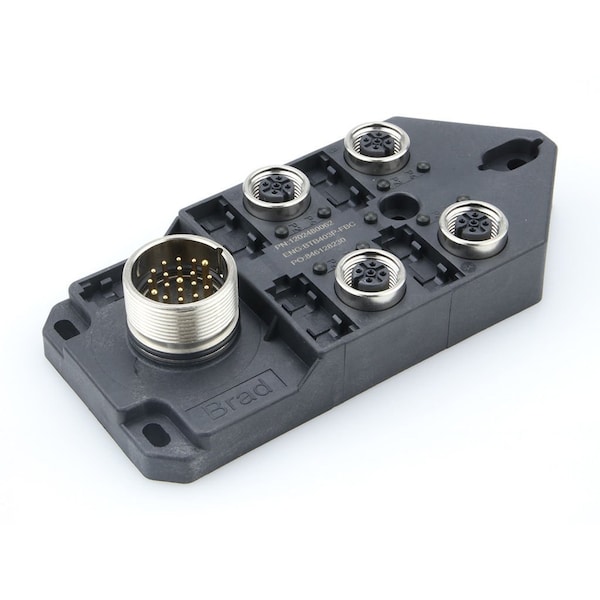

Conector Molex MPIS M12 PNP 5P 4PT M23 BK DUAL es un conector de alta calidad y rendimiento para aplicaciones industriales que requieren una conexión segura y fiable.
| Ports | 4 |
|---|---|
| Poles | 5 |
| Material - Plating Mating | Gold |
| Wire/Cable Type | WSOR |
| Functional Wiring | Dual-in PNP |
| Voltage - Maximum | 10-30V DC |
| Poles (wired) | 5 |
| Material - Metal | Copper Alloy |
| Temperature Range - Operating | -25°C to +85°C |
| UL | E152210 |
| Material - Housing | PBT |
| Home Run Interface | Integrated Connector |
| Home Run Connector | M23 - 19 pole |
| Wiring Configuration | O, Port, Dual I per |
| LED Indicator | Sensors |
| Keyway | A-coded |
| Current - Maximum per Contact | 12.0A per module, 4.0A per port |
| Orientation | Top Mount |
| Package Quantity | 1 |
