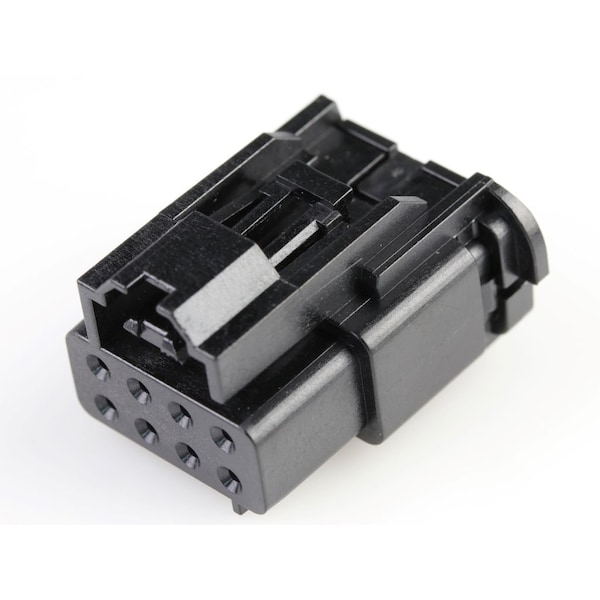

Multicat Mid-Power Receptacle Housing, 8 Circuits, Key A, Black, Without Cpa
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 205926 |
| Application | Power, Wire-to-Wire, Wire-to-Board |
| Standards | UL E29179 |
| Material | Polyetherimide |
| Hole Center to Center | 3.6 mm |
| Connector Type | Receptacle |
| Max. Temp. | 150 deg C |
| Number of Contacts | 8 |
| Flammability Rating | UL 94V-0 |
| Current Rating | 6.5 A |
| Keying to Mating Part | Yes |
| Flammability | 94V-0 |
| Product Name | MultiCat |
| Polarized to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Circuits (maximum) | 8 |
| UL | E29179 |
| Temperature Range - Operating | -40° to +150°C |
| Material - Resin | PEI |
| Pitch - Mating Interface | 3.6 mm |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
