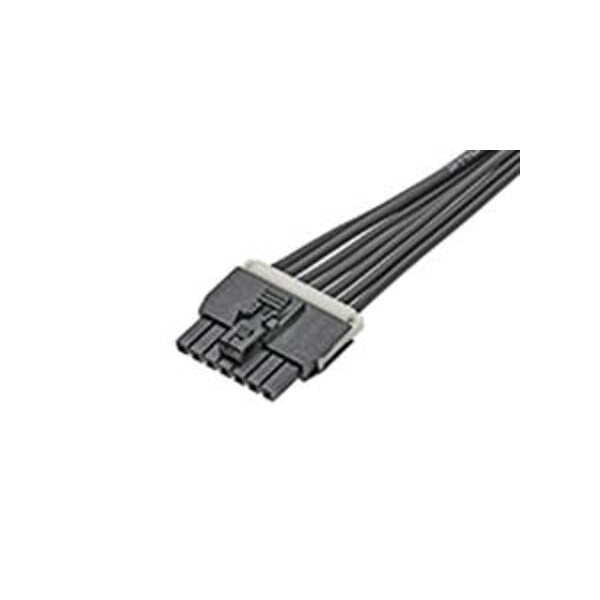

Nano-Fit-To-Nano-Fit Off-The-Shelf (Ots) Cable Assembly, Single Row
| Color | Black |
|---|---|
| Series | 145130 |
| Max. Voltage | 250 V AC |
| Application | Power, Wire-to-Board |
| Length | 75 mm |
| Connector Type | Female-Female |
| Material | Nylon |
| Current Rating | 6.5 A |
| Number of Rows | 1 |
| Number of Contacts | 7 |
| Type | Discrete Wire Assembly |
| Max. Insulation Dia. | 1.57 mm |
| Terminal Type | Crimp, Compression |
| Wire Range | 20 AWG |
| Contact Finish | Matte Tin Plated |
| Hole Center to Center | 2.5 mm |
| Terminal Finish | Matte Tin Plated |
| Contact Plating Thickness | 2.54 um |
| Wire/Cable Type | UL 1061 |
| Plating min - Mating | 2.54 um |
| Cable Length | 75 mm |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Wire Insulation Diameter | 1.57mm |
| Voltage - Maximum | 250 V |
| Wire Size (AWG) | 20 |
| Current - Maximum per Contact | 8 A |
| Single Ended | No |
| Assembly Configuration | Dual Ended Connectors |
| Overmolded | No |
| Circuits (Loaded) | 7 |
| Material - Plating Mating | Matte Tin |
| Material - Metal | Copper |
| Pitch - Mating Interface | 2.5 mm |
| Product Name | Nano-Fit |
| Material - Plating Termination | Matte Tin |
| Connector to Connector | Nano-Fit-to-Nano-Fit |
| Country of Origin (subject to change) | Thailand |
| Package Quantity | 1 |
