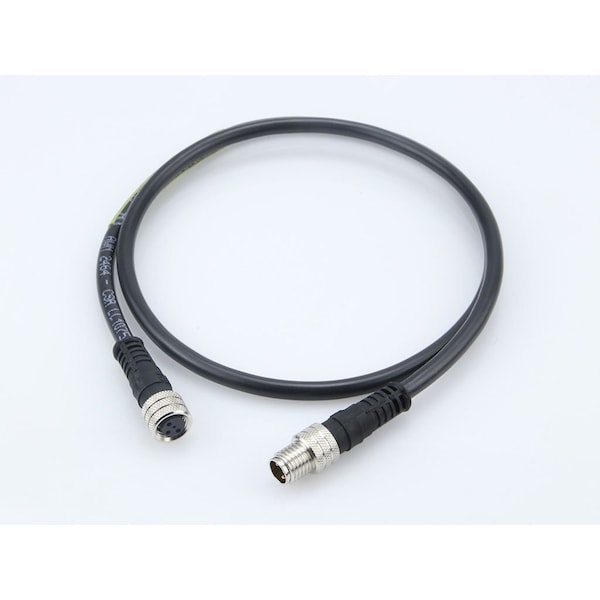

NC-3P-FE/MM-ST/ST-1M-PVC-NUT-0.25 se traduce como NC-3P-FE/MM-ST/ST-1M-PVC-NUT-0.25
| Cable Length | 1 m |
|---|---|
| Keyway | None |
| Wire/Cable Type | UL 2464 |
| Coupling Style | Threaded |
| Material - Cable Jacket | PVC |
| Color - Cable Jacket | Yellow |
| Cable Diameter | 5 mm |
| Material - Connector Body | PUR |
| Poles | 3 |
| LED Indicator | No |
| Gender | Female-Male |
| Material - Plating Mating | Gold |
| Voltage - Maximum | 60 V |
| Material - Coupling Nut | Nickel-plated Brass |
| Material - O-Ring | Fluoro-elastomer |
| Wire Size AWG | 24 |
| Orientation | Straight to Straight |
| Temperature Range - Operating | -25°C to +80°C |
| Current - Maximum per Contact | 3 A |
| Package Quantity | 1 |
