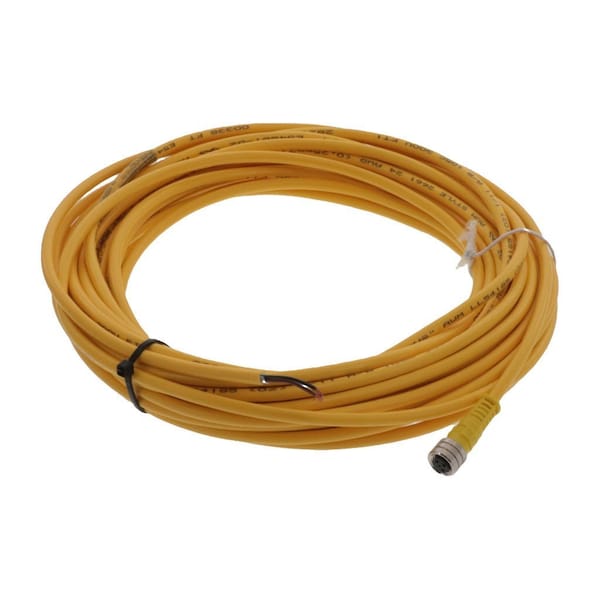

NC 3P FP 10M COUPLER 24AWG PVC
| Material - Coupling Nut | Nickel-plated Brass |
|---|---|
| Keyway | A-coded |
| Orientation | Straight to Pigtail |
| Wire Size AWG | 24 |
| Cable Length | 10 m |
| Cable Diameter | 4.32mm (.170") |
| Gender | Female-Pigtail |
| Material - O-Ring | Fluoro-elastomer |
| Wire/Cable Type | UL 2661 |
| Voltage - Maximum | 60V AC / 75V DC |
| CSA | LR6837 |
| Material - Plating Mating | Gold |
| Color - Cable Jacket | Yellow |
| Temperature Range - Operating | -20°C to +105°C |
| Material - Cable Jacket | PVC |
| Material - Connector Body | TPE |
| UL | E152210 |
| Poles | 3 pole |
| Current - Maximum per Contact | 3 A |
| Coupling Style | Threaded |
| LED Indicator | No |
| Type | Single Ended |
| Connector End B | Pigtail |
| Material - Contact | Copper Alloy |
| Connector End A | Nano-Change (M8) |
| Series | 120086 |
| IP Rating | IP67 |
| Product Name | Nano-Change |
| Package Quantity | 1 |
