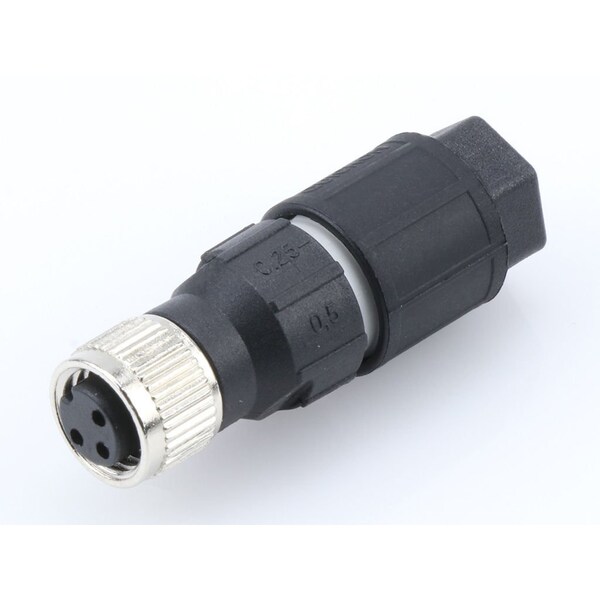

NC 3P IDC F-ATTACH STRAIGHT
| Min. Single Wire Size | 24 AWG |
|---|---|
| Max. Single Wire Size | 20 AWG |
| Series | 120091 |
| Max. Voltage | 60 V |
| IP Rating | IP67 |
| Max. Temp. | 80 deg C |
| Type | Field Attachable Connector |
| Material | Polyamide |
| Connector Type | Female |
| Contact Finish | Gold Plated |
| Current Rating | 3 A |
| Coupling Type | Internal Thread |
| Cable Diameter | 2.50-5.20mm (.098-.205") |
| Material - Plating Mating | Gold |
| Wire Size (AWG) | 20-24 |
| Temperature Range - Operating | -25°C to +80°C |
| Product Name | Nano-Change |
| Keyway | None |
| Poles | 3 |
| Orientation | Straight |
| Material - Coupling Nut | Nickel-Plated, Zinc Die-Cast |
| Current - Maximum per Contact | 3 A |
| Material - Contact | Copper Alloy |
| Material - Connector Body | PA |
| Diagnostics / LEDs | No |
| Approvals | cCSAus certified |
| Package Quantity | 1 |
