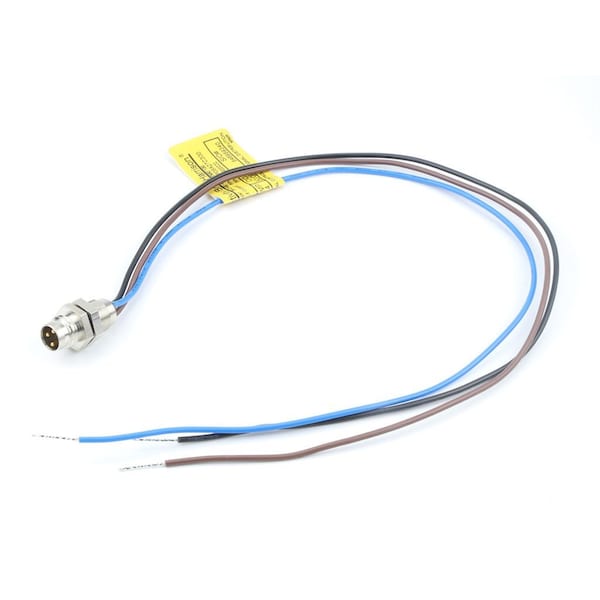

NC 3P MR 300MM M8X05
| NEMA Rating | NEMA 6 |
|---|---|
| Length | 0.3 m |
| Orientation | Straight |
| Current - Maximum per Contact | 4 A |
| Panel Mount | Front |
| Max. Cycles at Max. Process Temperature | 3 |
| Poles | 3 pole |
| Voltage - Maximum | 60V AC / 75V DC |
| Mounting Thread Size | M8 x 0.5 |
| Process Temperature max. C | 260 |
| Gender | Male |
| Duration at Max. Process Temperature (seconds) | 3 |
| CSA | LR6837 |
| Coupling Type | External Thread |
| Temperature Range - Operating | -20°C to +105°C |
| Keyway | None |
| Wire Size AWG | 24 |
| Material - Component | Nickel-plated Brass |
| UL | E46237 |
| Series | 120090 |
| IP Rating | IP67 |
| Type | Single Ended |
| Wire/Cable Type | UL 1569 |
| Product Name | Nano-Change |
| Package Quantity | 1 |
