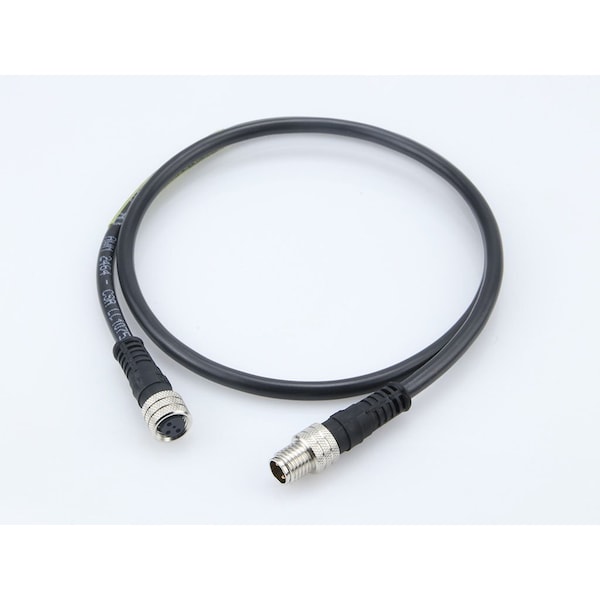

NC-4P-4W-FE/MM-ST/ST-1M-PVC-0.25 se traduce como: NC-4P-4W-FE/MM-ST/ST-1M-PVC-0.25
| Cable Length | 1 m |
|---|---|
| IP Rating | IP67 |
| Type | Double Ended |
| Keyway | Single |
| Material - O-Ring | Fluoro-elastomer |
| LED Indicator | No |
| Material - Plating Mating | Gold |
| Cable Diameter | 4.57 mm |
| Wire Size AWG | 24 |
| Current - Maximum per Contact | 3 A |
| Poles | 4 |
| Material - Cable Jacket | PVC |
| Material - Connector Body | PUR |
| Coupling Style | Threaded |
| Temperature Range - Operating | -25°C to +80°C |
| Orientation | Straight to Straight |
| Voltage - Maximum | 30 V |
| Color - Cable Jacket | Black |
| Gender | Female-Male |
| Material - Coupling Nut | Nickel-plated Brass |
| Wire/Cable Type | UL 2464 |
| Connector End A | Nano-Change |
| Connector End B | Nano-Change |
| Product Name | Nano-Change |
| Material - Contact | Copper Alloy |
| Series | 120087 |
| Package Quantity | 1 |
